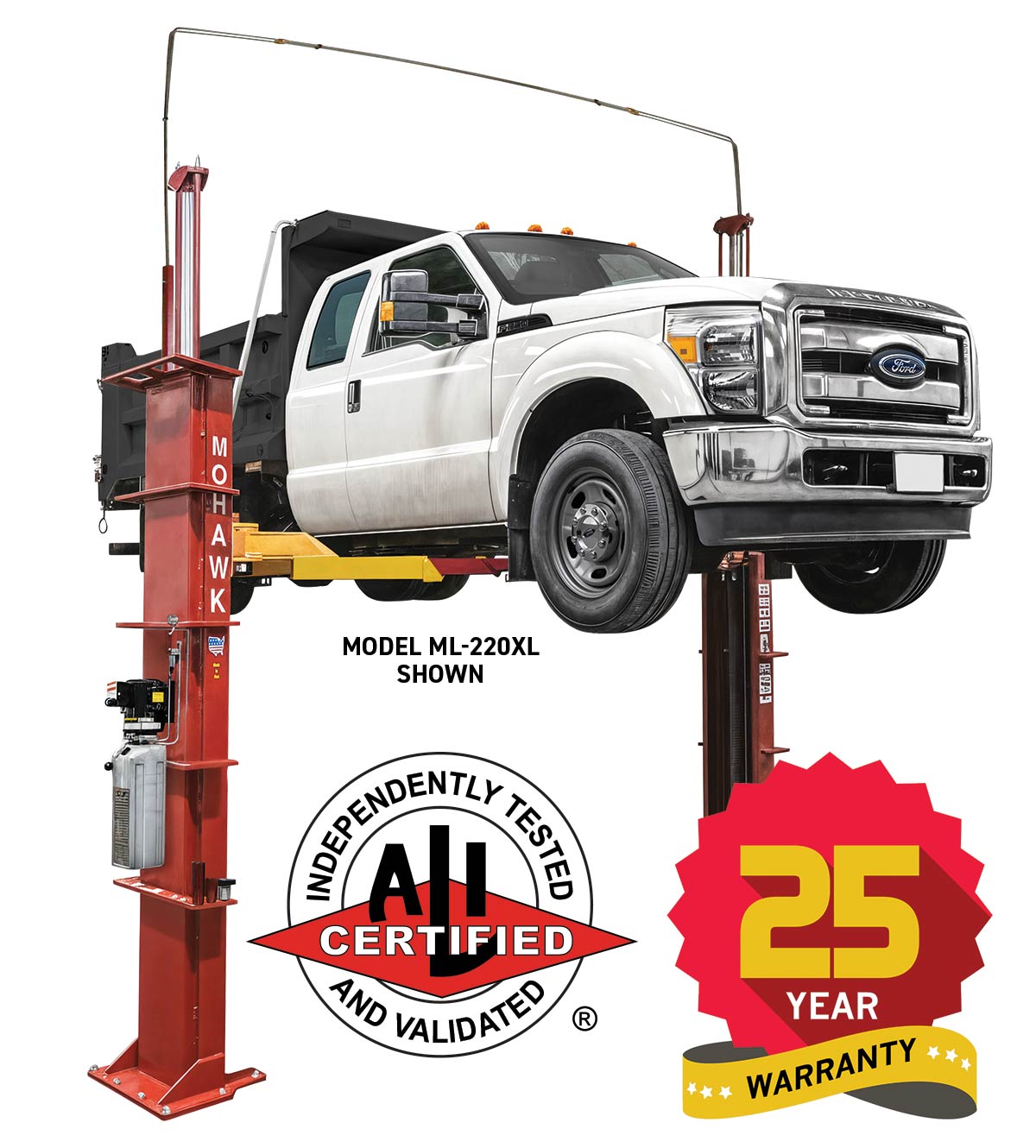

Mohawk Lifts ML-220XL
ALI Certified – 20,000 lbs. Capacity
10′ Column Height
12′ 7 1⁄2” Overall Width (Adjustable)
6′ Lifting Height
Stocked Locally in Farmingdale, NY
Heavy-Duty Lifts Built for Serious Work
Mohawk lifts are engineered for long-term durability under the toughest shop conditions. Heavy-duty ¾-inch forklift-mast columns deliver unmatched rigidity, while 8 double-sealed steel roller bearings on each carriage ensure smooth, maintenance-free lifting with no plastic wear components.
Twin 4-inch hydraulic cylinders provide balanced, controlled lifting on every cycle, and stainless steel hard lines can be mounted overhead or routed in-floor to accommodate taller trucks and vans. Low-profile swing arms reach under most passenger vehicles, and the included 3″ and 6″ stackable adapters with spin-up pads offer precise, level contact for SUVs and work trucks. With three-stage arm designs, technicians can easily reach even the most challenging lift points.
Advanced Safety Built Into Every Lift
Safety is built into every Mohawk Lift. Both columns use full-range mechanical locks that engage every 3 inches, securing the vehicle at any height. Inside, infinite-position hydraulic safeties work continuously, supported by pressure-compensated flow controls and velocity fuses that guard against unintended descent. Automatic swing arm restraints lock as the lift rises and release only when fully lowered, ensuring predictable and reliable operation for every technician.
Mohawk reinforces this commitment to safety with the industry’s strongest warranty—25 years structural, 10 years mechanical, and a limited lifetime cylinder seal warranty. Flexible financing options, including one- to five-year lease and purchase plans, make upgrading to a Mohawk lift straightforward and cost-effective.
Efficient Lift Operation Without Height Restrictions
Mohawk’s design eliminates the height limitations and interference found on traditional two-post lifts. Instead of overhead cable shrouds or bulky floor plates, the ML-220XL uses stainless steel hydraulic lines routed either overhead or in-floor to keep the workspace open and unobstructed. A patented hydraulic synchronization system replaces the wire rope cables and plastic pulleys used by other manufacturers, while direct-drive lifting rods ensure consistent, low-maintenance operation without the wear points of cable-driven mechanisms.
Because each carriage rides on double-sealed steel ball bearing rollers, the lift delivers smooth, friction-free performance for its entire service life—no lubrication or replacement parts required. The result is a cleaner, simpler, and more durable lifting system that operates effortlessly and stands up to decades of heavy shop use.
The Industry’s Best Warranty – Guaranteed
Backed by the best warranty in the business, the ML-220XL includes:
- 25-year structural warranty
- 10-year mechanical warranty
- Limited lifetime hydraulic cylinder warranty
No other lift manufacturer matches Mohawk’s confidence—or commitment—to quality and customer support.
Mohawks ml-220xl 2-post Features

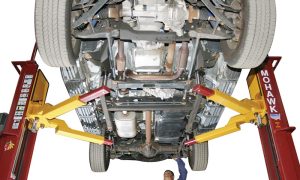

Under Vehicle Access
Two post lifts offer FULL under vehicle access for all repairs, takes up minimal bay space, while leaving the wheels hanging free for tire, brake or any other necessary repairs.

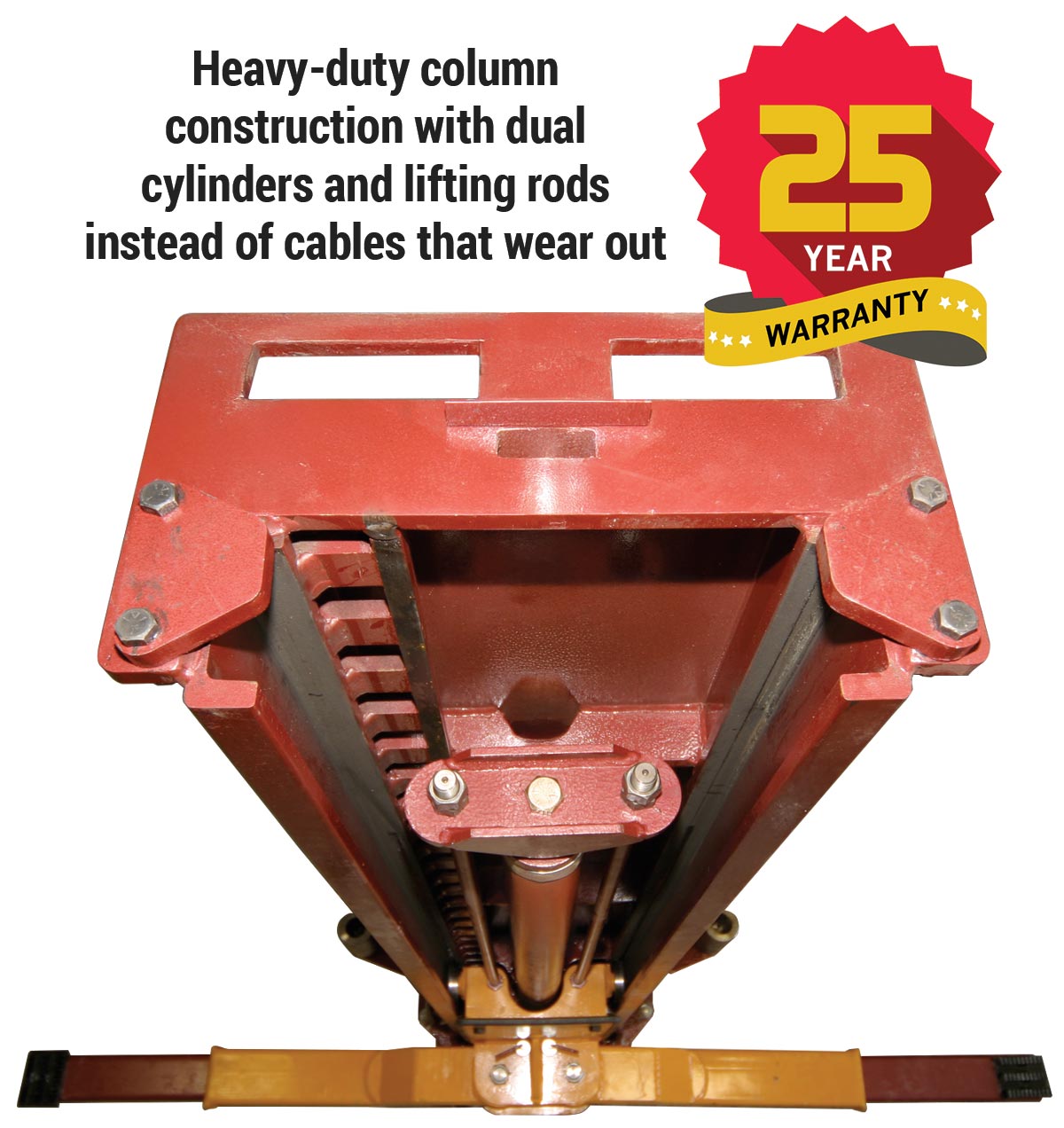

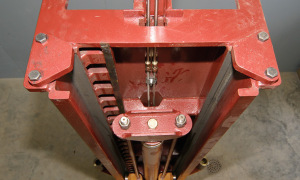

Heavy Duty Columns
Heavy duty column construction with direct drive cylinders, direct drive lifting rods (not cables) and stainless steel hydraulic lines (not rubber hoses) which will never wear.

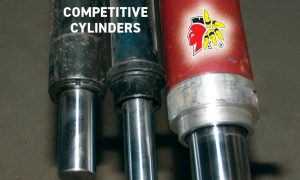

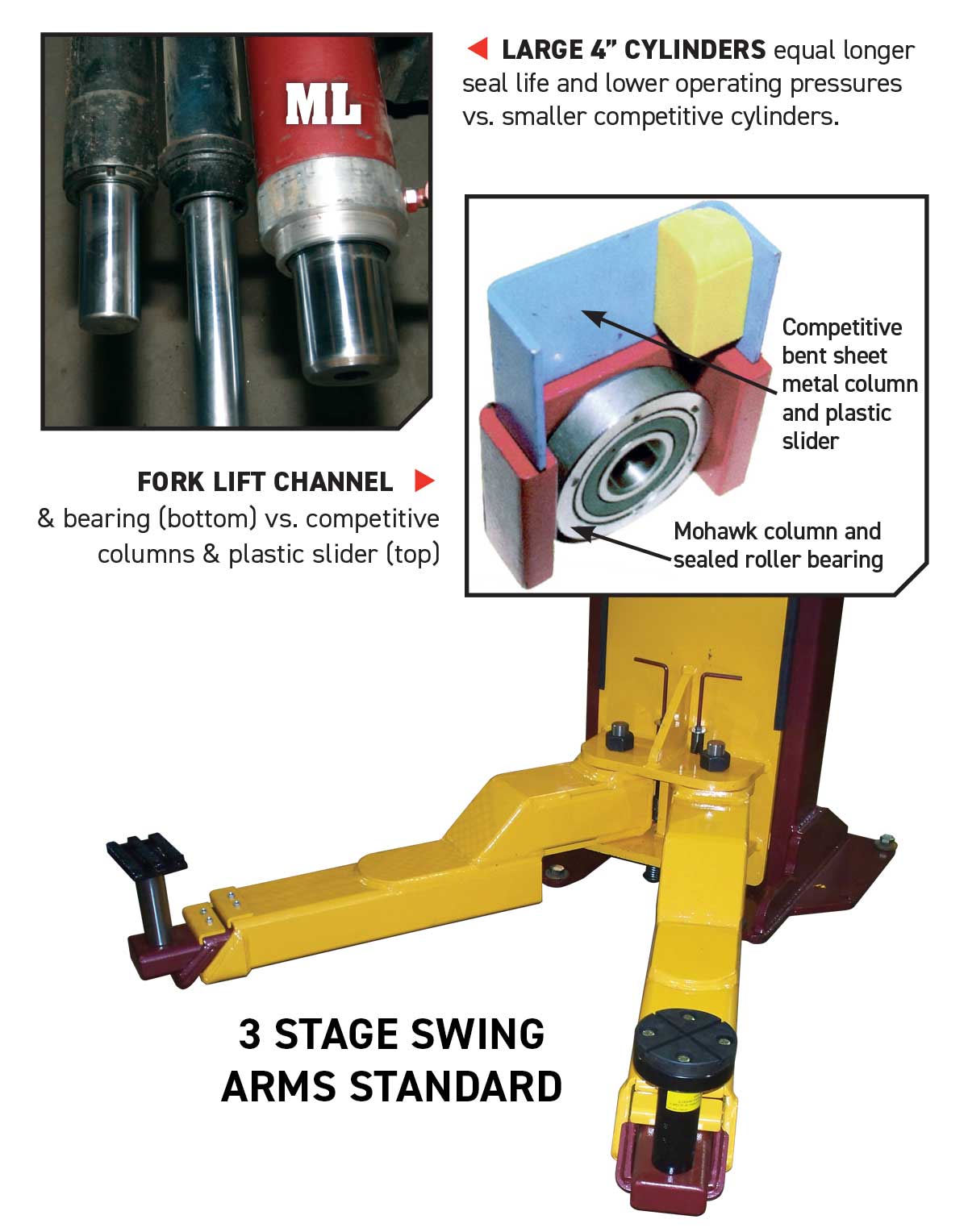

4″ Cylinders
Large 4” cylinders equal longer seal life and lower operating pressures vs. smaller competitive cylinders.

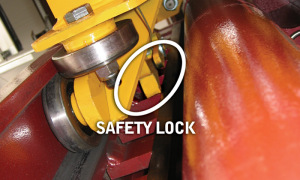

Safety Lock
ALL position 1” thick mechanical locks on BOTH carriages engage the full length of travel.
Under Vehicle Access
Two post lifts offer FULL unobstructed under vehicle access for all repairs, takes up minimal bay space and leaves the wheels hanging free for tire, brake or any other necessary repairs.

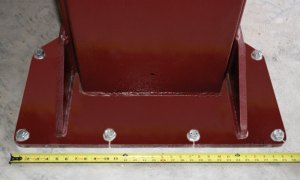

Lift Footprint
Mohawk’s large and stable footprint measures 30” wide by 24” and is made of 3/4” thick plate. Mohawk’s large base gives stability to the lift, while distributing the load to the shop floor.

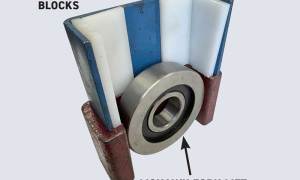

Bearing Vs. Plastic
FORK LIFT CHANNEL & bearing (bottom) vs. competitive columns & plastic slider (top).

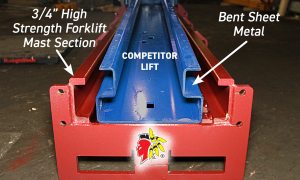

Column Comparison
Mohawks 10,000 lb. lift uses ¾” high-strength forklift mast steel columns (red lift, above), vs. competitor 12,000 lb. lifts that use bent sheet metal columns (blue lift, above).

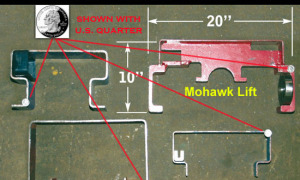

Competitor Comparison
Mohawk fork lift channel & bearing (top right) VS. 3 different sheet metal columns which use plastic slides. Like your fork lifts mast, Mohawk lifts DO NOT WEAR OUT!

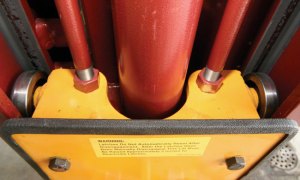

Lift Carriage
Each carriage rolls on 8 4” double sealed, self lubricating, heavy duty ball bearing rollers for a lifetime of trouble-free service (not plastic slide blocks).

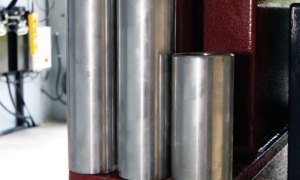

Adaptors
5”, 7 1/2” and 10” stacking adaptors included (for hard to reach frames).
Options & Accessories

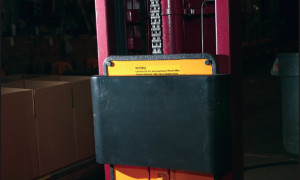

Foam Door Guard
Protects vehicle from dents and scratches if the door is accidentally opened into the columns. 2″ thick soft foam won’t damage doors (unlike other hard plastic door protectors)

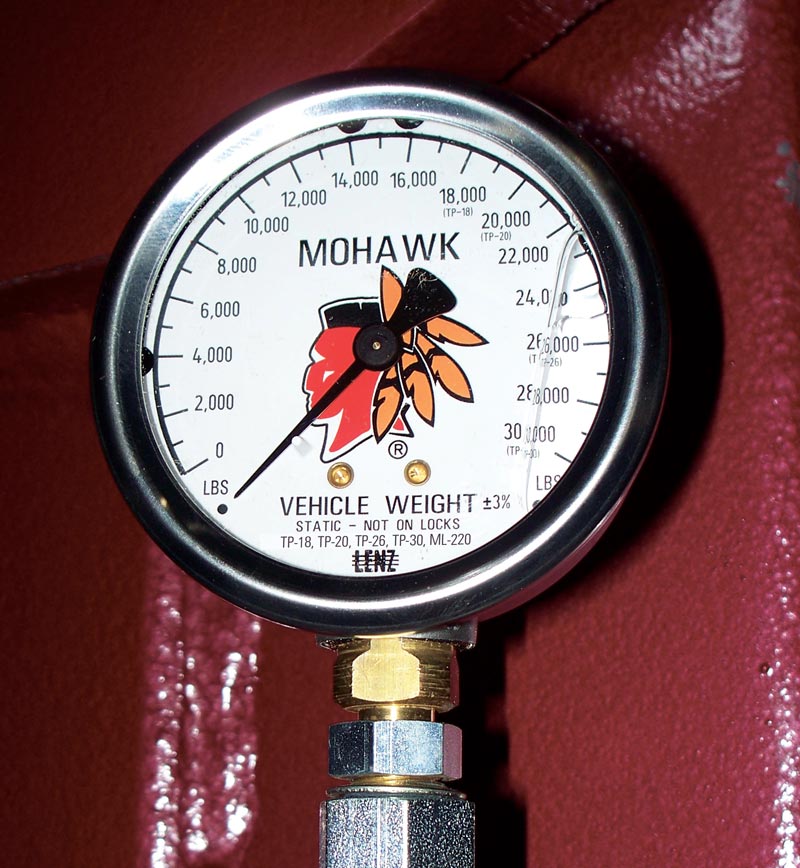

Safety Weight Gauge
Aides in vehicle diagnosis by measuring weight within 3% accuracy. Installed directly into the hydraulic system.

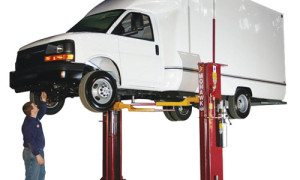

Extended Height Overhead Lines
Made of stainless steel that never needs replacingAdjustable to any ceiling height Hydraulic lines can be lowered for low ceiling shops.

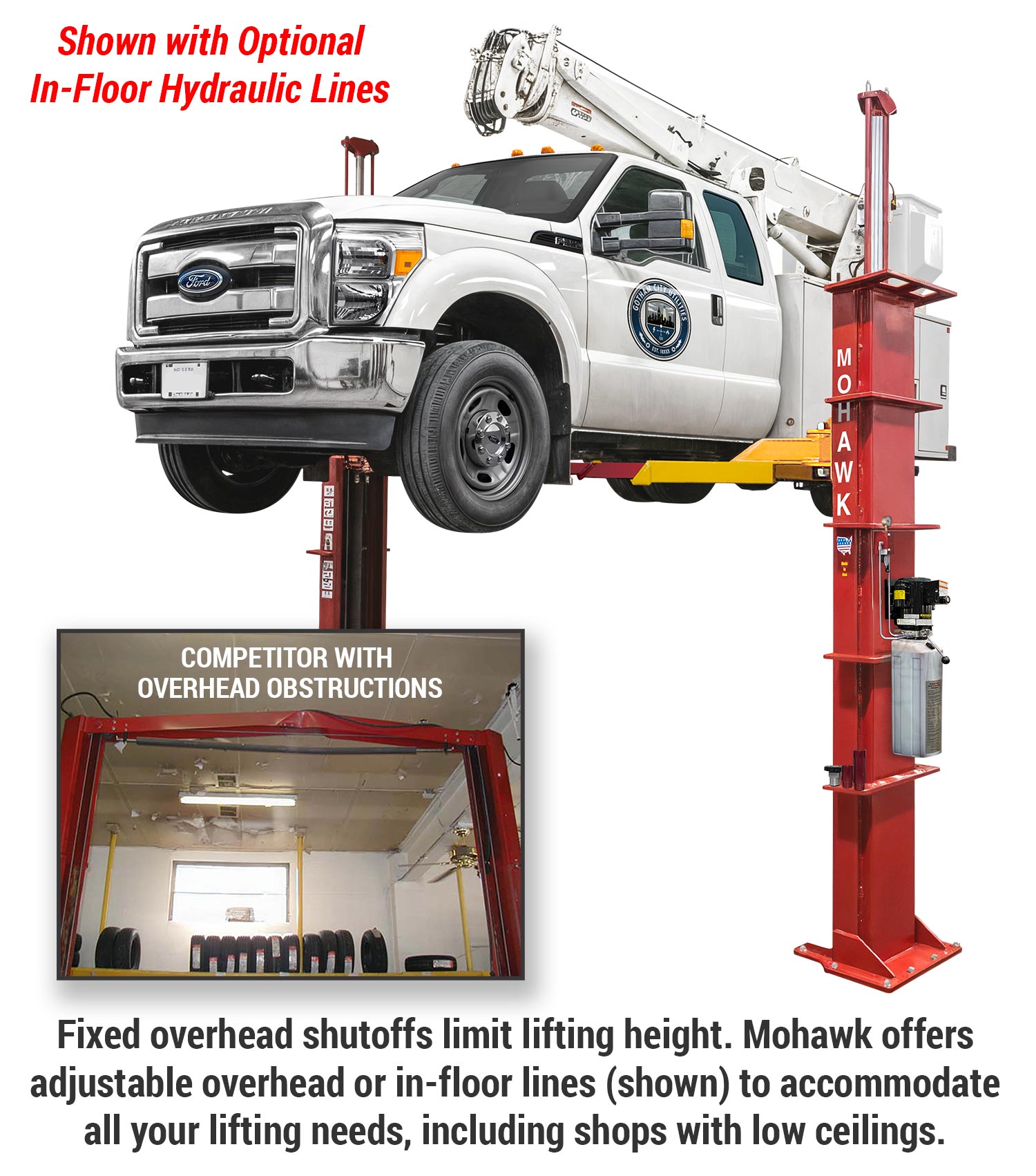

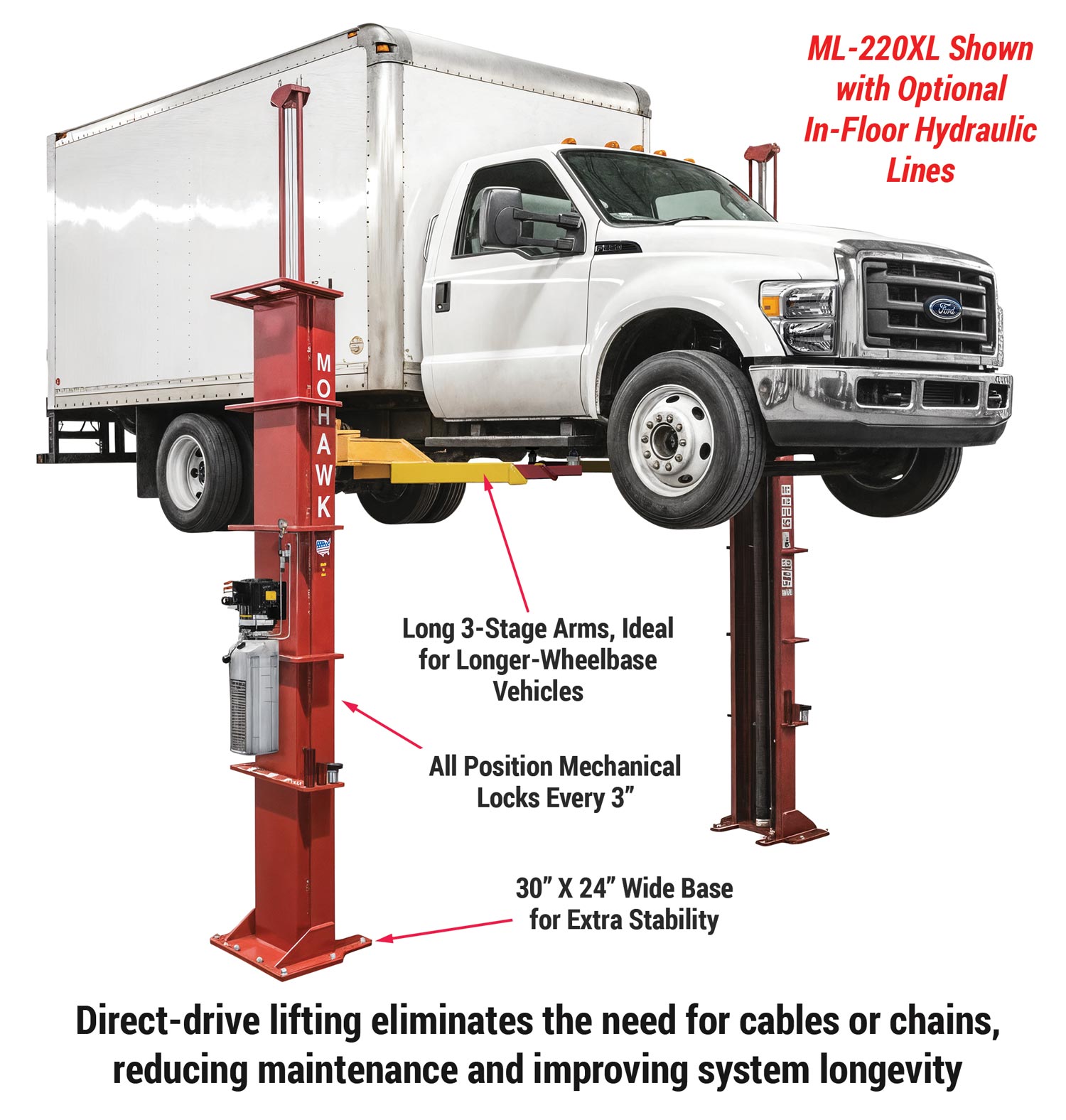

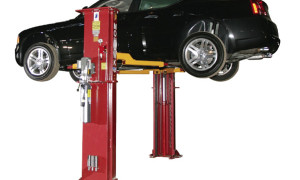

In-Floor Hydraulic Lines
100% designed, welded, and manufactured in the U.S.A.
| Model: | ML-220XL |
| Capacity: | 20,000 lbs. |
| Motor Rating: | 3 HP/208-230V, Single-phase (3ø optional) |
| Synchronization: | Hydraulic fluid displacement using no chains, cables, or overhead obstructions |
| Arm Pad Height: | 5' 11⁄16" min. |
| Lifting Height: | 6' under arm |
| Lift Pad Height @ Full Rise: | 7' 2 ¼" |
| Overall Width (adjustable): | 12' 7 1⁄2" (adjustable) |
| Width Between Posts: | 9' 6" to 10' (adjustable) |
| Width Between Lifting Arms: | 8' 9 3⁄4" (adjustable) |
| Column Height: | 10' |
| Overhead Hydraulic Line Height: | 15’ Standard (adjustable to accommodate any height ceiling or routed in-floor) |
| Weight: | 4,100 lbs. |
| Concrete Floor Requirements: | 4000 psi (27579.02 kPa) mix 6 1⁄2" |
| Wide Base: | 5 1⁄2" of 4,000 psi concrete |
| Standard Base: | 6 1⁄2" of 4,000 psi concrete |
| Anchoring System (included): | (16) 3⁄4" x 6" bolts |
| Mechanical Safety Locks: | Automatic; all position starting ground level |
| Hydraulic Safety Systems: | Automatic; all position |
| Swing Arm Restraints: | Automatic upon ascent |
| Cylinders: | 2 (1 per column) |
| Drive System: | #BL-848 leaf chain routed over cylinder |
| Lifting Speed: | 90 seconds at full load (faster with lighter load) |
| Thrust & Guide Bearings: | (16) 4" diameter, (8 per carriage) double sealed, self-lubricating ball bearing rollers |
| 3" Frame Adaptors (stackable): | 4 included as standard equipment |
| 6" Frame Adaptors (stackable): | 4 included as standard equipment |
| Spin-Up Adjustable Pad: | 4 included as standard equipment |
| Floor Access Between Posts: | Clear and unobstructed |
| Warranty: | 25 years structural, 10 year mechanical, plus limited lifetime cylinder seal warranty |
