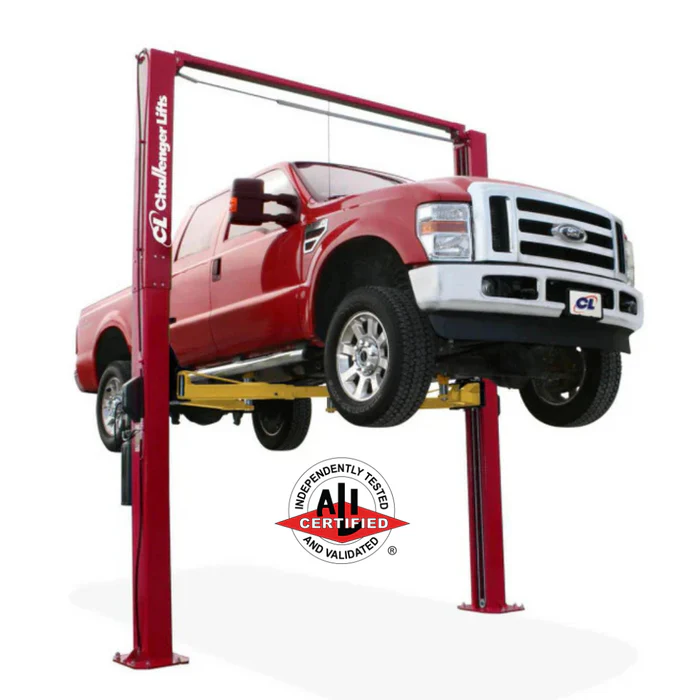

Challenger Lifts LE12-3S ALI-Certified 12,000 Lb. Heavy-Duty Economy Two-Post Lift
166″ / 175” Overall Height, 77.75” Rise
139.75” Overall Width / 12,000 lb. Capacity
Challenger Lifts LE12-3s is the perfect economic 2-post lift for servicing trucks and other vehicles up to 12,000 lbs. Heavy-duty 3-stage front and 3-stage rear arms offer symmetric lifting capability. Also, adjustable column height accommodates higher profile vehicles while providing ample servicing headroom. The LE12-3s comes standard with stack adapters. Accommodate higher profile vehicles with optional 2 foot column extensions.
Stocked Locally in Farmingdale, NY
FEATURES
- ALI-certified
- 12,000 lbs. lifting capacity
- 3-stage arms enable a wide range of symmetric lifting that includes vehicles from heavy-duty trucks to small passenger sedans, within rated capacity
- Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
- Single point mechanical lock release allows technician to disengage both columns simultaneously
- Padded overhead shut off system with micro switch prevents vehicle damage
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
- Powder coat finish provides long-lasting durability
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
SPECIFICATIONS
| Model Number | LE12-3S |
| Lifting Capacity | 12,000 lbs. |
| Arms | 3-stage front/3-stage rear |
| Lifting Configuration | Symmetric |
| Rise Height | 77.75” |
| Overall Height | 166”/175” |
| 2’ Height Extension Available | Yes |
| Overall Width | 139.75” |
| Drive-Thru Clearance | 103” |
| Floor to Overhead Switch | 159.5”/168.5” |
| Minimum Arm Reach | 27.5” |
| Maximum Arm Reach | 54.5” |
| Screw Pad Height | 5.25”-6.75” |
| Inside Columns | 115” |
| Ceiling Height Required | 167”/176” |
| Motor / Voltage | 2HP, 208v - 230v |
| Speed of Rise | 61 s |
| ALI/ETL Certified | Yes |
| Colors Available | Red, Blue |
