Typhoon
A central vacuum system designed to provide suction, air, and power while maintaining a clean and quiet body shop.
Typhoon
A central vacuum system designed to provide suction, air, and power while maintaining a clean and quiet body shop.
A powerful repair platform for medium to large vehicles. The Multibench EXT provides superior precision and speed throughout the entire repair process.
The Touch Can
Measure
Vehicle Frame & Structural Items
Vehicle Frame & Structural Items
Vehicle Frame & Structural Items
Vehicle Frame & Structural Items
Vehicle Frame & Structural Items
Vehicle Frame & Structural Items
Vehicle Frame & Structural Items
Vehicle Frame & Structural Items
Vehicle Frame & Structural Items
A robust frame machine with
a variety of
benefits
01
A Variety of uses
The Typhoon not only provides superior performance but it allows for technicians to have air, current, and suction as needed.
02
Sound proof options
Both the 3B and 4B are available in sound proof 3B/S and 4B/S options which limits the noise level even more than our standard design.
03
High quality components
Comprised of high quality components, the Typhoon is constructed with 15/10 thick, powder-coated steel and requires very little maintenance.
04
Customizable
Our centralized vacuum systems are customizable to meet your requirements and pair perfectly with our range of articulated arms.

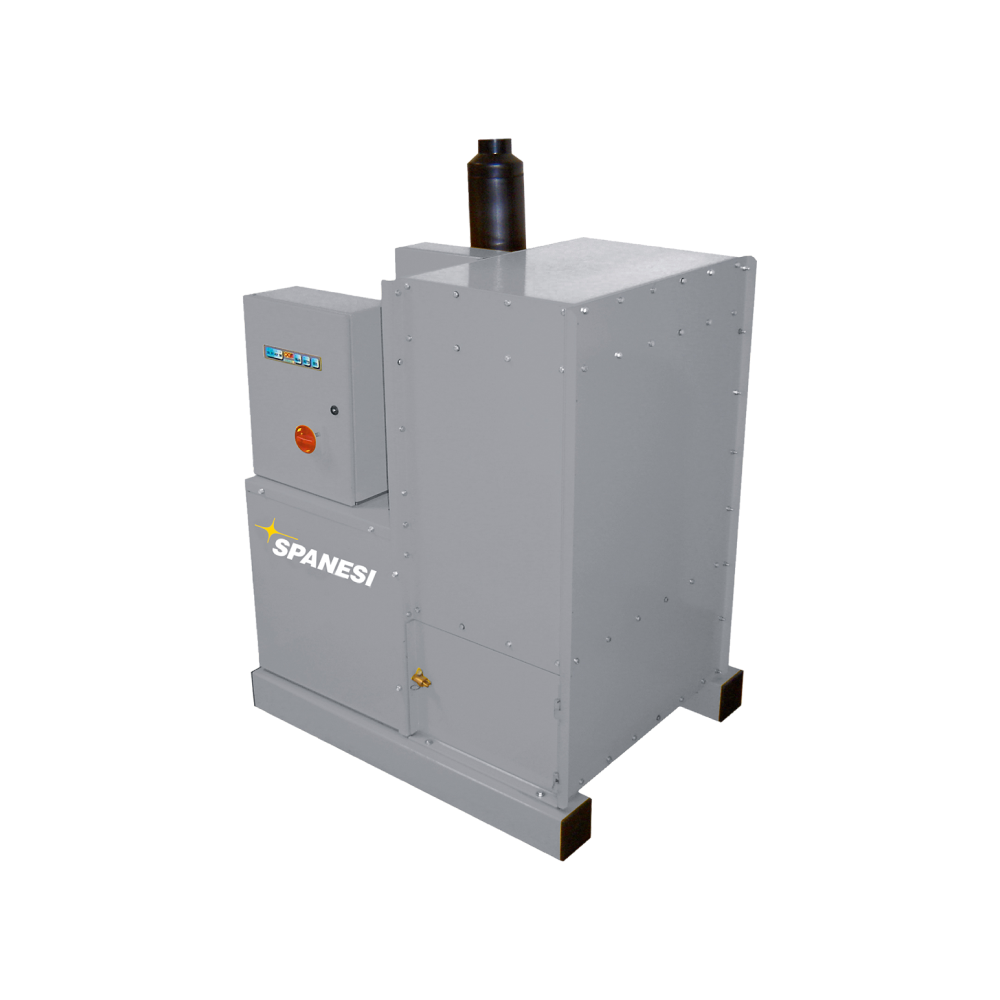

Typhoon
3b & 3b/s
A central vacuum system with 3 KW of power. Available in standard (3B) and soundproof (3B/S) to limit the noise level in your body shop.
3b & 3b/s specifications:
Power: 3 KW
Air Flow Rate: 300 m3/h
Filter Surface Area: 0.57 m2
Motors: 1
Height: 3′ 7″
Width: 2′ 6″
Length: 3′
Weight: 374 lbs
typhoon
4b & 4b/s
4B & 4b/s specifications:
Power: 5.5 KW
Air Flow Rate: 500 M3/H
Filter Surface Area: 2.7 M2
Motors: 1
Height: 5′ 3″
Width: 2′ 6″
Length: 3′
Weight: 564 lbs
Typhoon
Centralized.
Durable.
Request A Quote
We offer a complete range of equipment for your body shop. Request a quote today and experience the Spanesi difference
Typhoon 3B & 4B
Technical Specifications
Power: 3 | 5.5 kW
Air Flow Rate: 300 | 500 m3/h
Filter Surface Area: 0.57 | 2.70 m2
Negative Pressure: 1600 mm H2O
Height: 3′ 7″ | 5′ 3″
Width: 2′ 6″
Length: 3′
Weight: 374 | 564 LBS
Sound Proof Options: 3B/S | 4B/S
A Powerful typhoon with a
multitude of benefits
01
A variety of uses
The Typhoon not only provides superior performance but it allows for technicians to have air, current, and suction as needed.
03
High quality components
Comprised of high quality components, the Typhoon is constructed with 15/10 thick, powder-coated steel and requires very little maintenance.
02
Sound proof options
Both the 3B and 4B are available in sound proof 3B/S and 4B/S options which limits the noise level even more than our standard design.
04
Customizable
Our centralized vacuum systems are customizable to meet your requirements and pair perfectly with our range of articulated arms.
Typhoon
3B & 3b/s
A central vacuum system with 3 KW of power. Available in standard (3B) and soundproof (3B/S) to limit the noise level in your body shop.

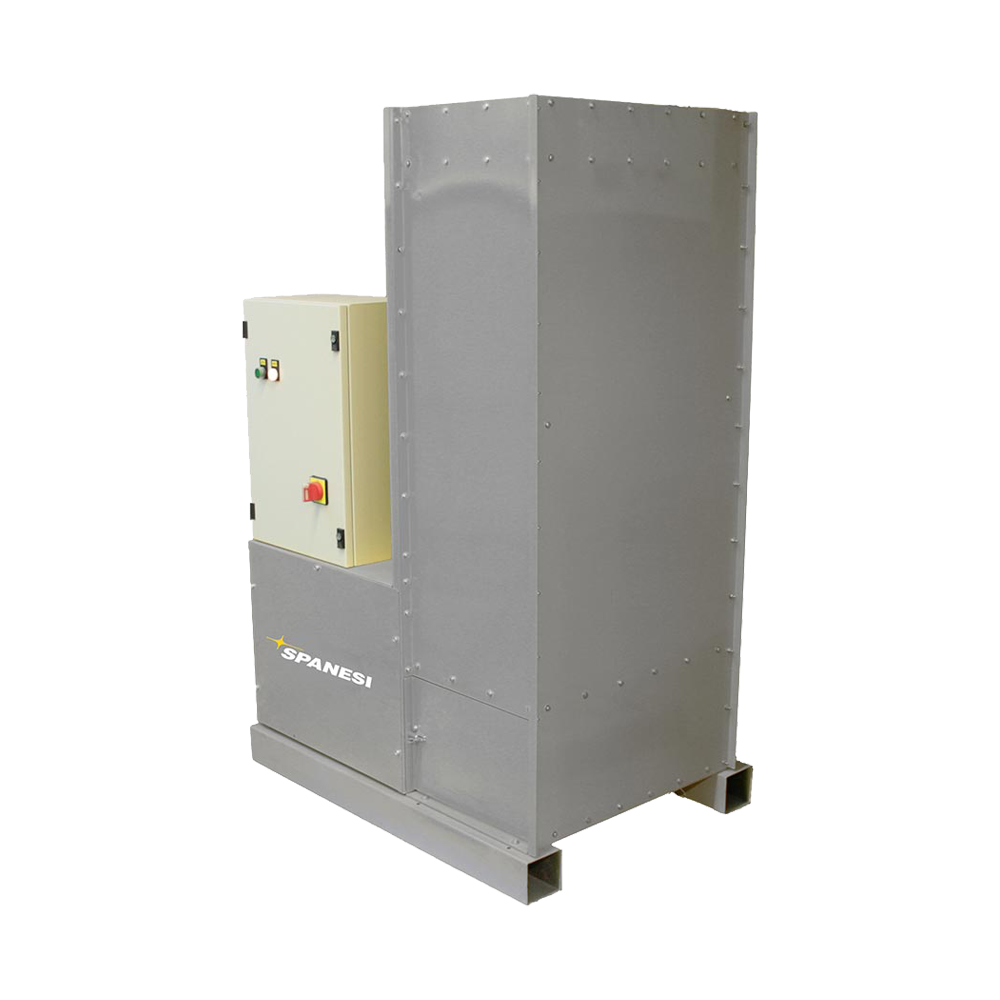

Typhoon
4b & 4b/s
A centralized vacuum system with 5.5 KW of power. Available in standard (4B) and soundproof (4B/S) to limit the noise level in your body shop.
3b & 3b/s Specifications:
Power: 3 KW
Air Flow Rate: 300 m3/h
Filter Surface Area: 0.57 m2
Motors: 1
Height: 3′ 7″
Width: 2′ 6″
Length: 3′
Weight: 374 lbs
4b & 4b/s Specifications:
Power: 5.5 KW
Air Flow Rate: 500 M3/H
Filter Surface Area: 2.7 M2
Motors: 1
Height: 5′ 3″
Width: 2′ 6″
Length: 3′
Weight: 564 lbs
Typhoon
centralized. durable.
Request A Quote
We offer a complete range of equipment for your body shop. Request a quote today and experience the Spanesi difference
