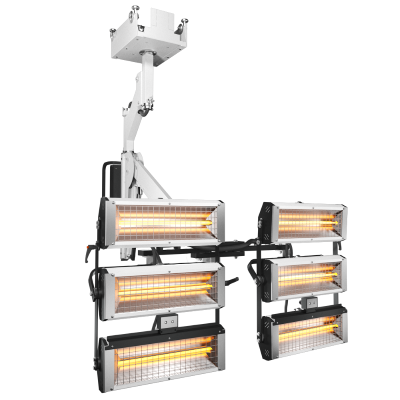

Aerial series
The Marea Aerial Series is a complete range of overhead infrared lamps designed to optimize body shop space.
Aerial Series
The Marea Aerial Series is a complete range of overhead infrared lamps designed to optimize body shop space.
A powerful repair platform for medium to large vehicles. The Multibench EXT provides superior precision and speed throughout the entire repair process.
The Touch Can
Measure
Vehicle Frame & Structural Items
Vehicle Frame & Structural Items
Vehicle Frame & Structural Items
Vehicle Frame & Structural Items
Vehicle Frame & Structural Items
A robust frame machine with
a variety of
benefits
01
Adjustable
Aerial Infrared Curing Systems are installed on special aluminum rails that allow the lamps to be positioned and moved (length and width) to the most suitable location.
02
Optimal drying
Each lamp can be adjusted by height and angle to achieve the optimal surface radiation, increasing efficiency and prompting optimal drying and reducing curing time.
03
Intuitive controls
Choose between our Electronic Control Panel or our 8-Program Electronic Control Panel with intuitive display and simple operating controls.
04
Space saving
Overhead aerial installation of curing lamps allows for the utilization of commonly unused space within a body shop.
Aerial curing systems make
Drying more
efficient

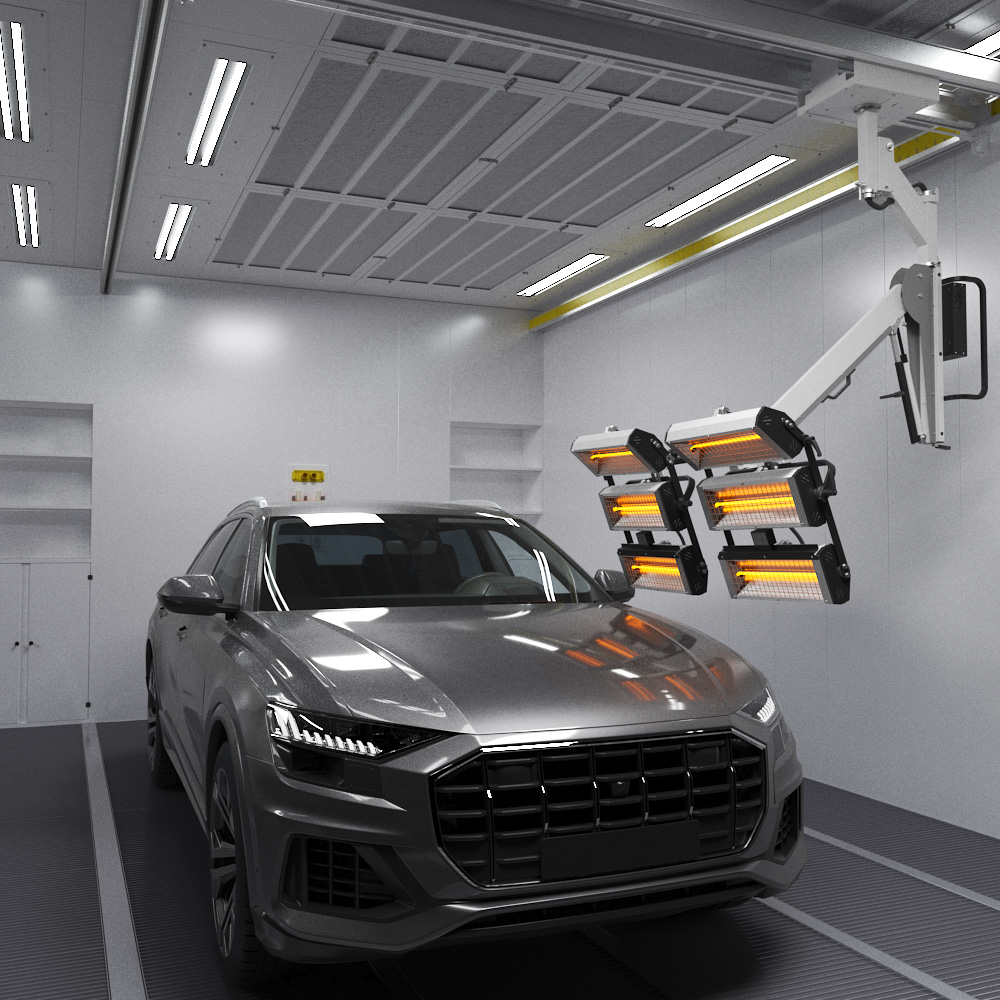

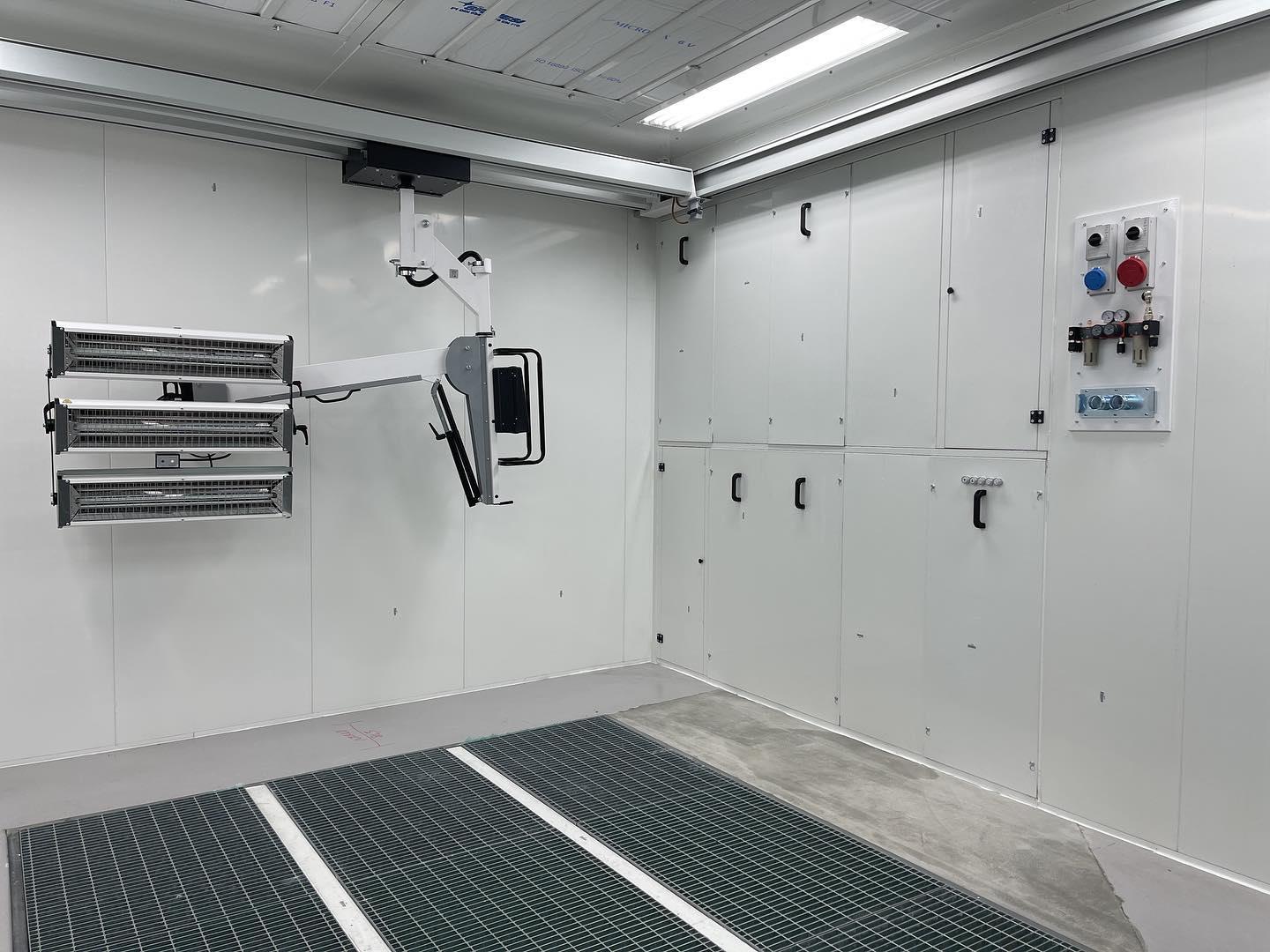

Spanesi’s innovative Marea Aerial Series of infrared curing lamps are designed to optimize space and improve drying efficiency. These state-of-the-art systems utilize special aluminum rails that allow for flexible position within preparation areas and spray booths, minimizing space requirements. Each lamp can be adjusted in height and angle to achieve the optimal surface radiation.
The user-friendly control panel, available in both electronic and 8-program electronic versions, simplifies operation and improves technician efficiency. Compared to traditional curing lamps, our infrared lamps feature high-efficiency resistors that concentrate heat output, resulting in a 150% increase in energy efficiency and a 35% reduction in energy consumption.

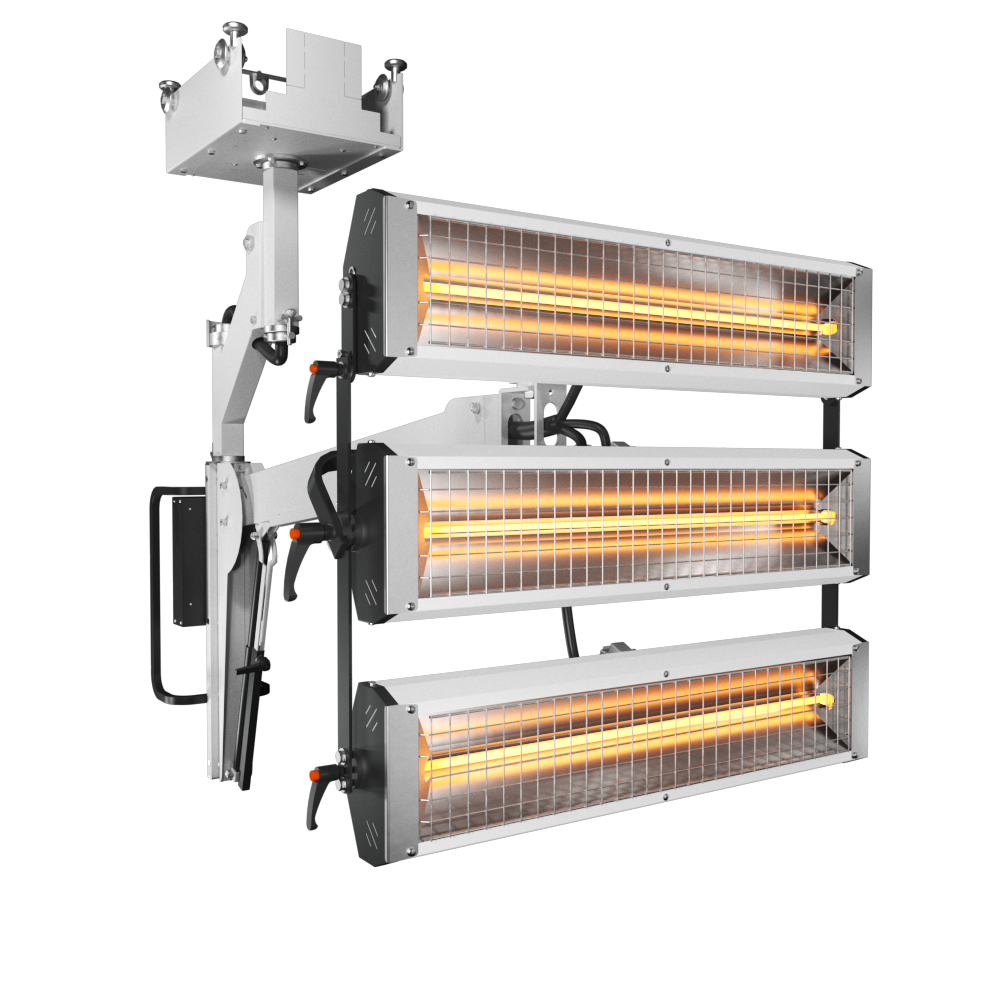

3-panel aerial
marea 3
MAREA 3 specifications:
Panels: 850 mm
Power: 3 x 1500 w
Dried Surface: 1.5 m x 1.1 m
Pyrometer
Power supply: 400 V 3F+N
Electronic / 8 – Program
6-panel aerial
marea 6
MAREA 6 specifications:
Panels: 600 mm
Power: 6 x 1500 w
Dried Surface: 2.1 m x 1.1 m
Pyrometer
Power supply: 400 V 3F+N
Electronic / 8 – Program
Aerial
Lamps
Adjustable. Space-
Saving.
Optional
Accessories
Get more out of your Marea Aerial Series with optional accessories from Spanesi. Expand the capabilities of your aerial infrared curing system to increase service offerings and improve technician repair options and vehicle compatibility.
Click each accessory to learn more.
10002192 | Portable UV-A Lamp
Electrical output 150 W per manual lamp. Wavelength 395 mm +/- 5 mm. Power density 400 mW/CM2 (5 cm from the substrate)
Request A Quote
We offer a complete range of equipment for your body shop. Request a quote today and experience the Spanesi difference
Marea aerial series
Specifications
Emission: short wave
Panel lengths: 600 mm – 850 mm
Power: 1500 w
Electronic or 8 – program
Installed on aluminium rails
Infrared curing with a
variety of benefits
01
Adjustable
Aerial Infrared Curing Systems are installed on special aluminum rails that allow the lamps to be positioned and moved (length and width) to the most suitable location.
03
Intuitive controls
Choose between our Electronic Control Panel or our 8-Program Electronic Control Panel with intuitive display and simple operating controls.
02
Optimal drying
Each lamp can be adjusted by height and angle to achieve the optimal surface radiation, increasing efficiency and prompting optimal drying and reducing curing time.
04
Space saving
Overhead aerial installation of curing lamps allows for the utilization of commonly unused space within a body shop.
Aerial Curing Systems Make
Drying more Efficient
Spanesi’s innovative Marea Aerial Series of infrared curing lamps are designed to optimize space and improve drying efficiency. These state-of-the-art systems utilize special aluminum rails that allow for flexible position within preparation areas and spray booths, minimizing space requirements. Each lamp can be adjusted in height and angle to achieve the optimal surface radiation.
The user-friendly control panel, available in both electronic and 8-program electronic versions, simplifies operation and improves technician efficiency. Compared to traditional curing lamps, our infrared lamps feature high-efficiency resistors that concentrate heat output, resulting in a 150% increase in energy efficiency and a 35% reduction in energy consumption.
3-Panel Aerial
Marea 3
6-Panel Aerial
Marea 6
MAREA 3 Specifications:
Panels: 850 mm
Power: 3 x 1500 W
Dried surface: 1.5 m x 1.1 m
Pyrometer
Power supply: 400 V 3F+N
Electronic / 8 – program
MAREA 6 Specifications:
Panels: 600 mm
Power: 6 x 1500 W
Dried surface: 2.1 mm x 1.1 mm
Pyrometer
Power supply: 400 v 3F+n
Electronic / 8 – program
Aerial Lamps
Adjustable. Space-saving.
Optional
Accessories
Get more out of your Marea Aerial Series with optional accessories from Spanesi. Expand the capabilities of your aerial infrared curing system to increase service offerings and improve technician repair options and vehicle compatibility.
Click each accessory to learn more.
10002192 | Portable UV-A Lamp
Electrical output 150 W per manual lamp. Wavelength 395 mm +/- 5 mm. Power density 400 mW/CM2 (5 cm from the substrate)
Request A Quote
We offer a complete range of equipment for your body shop. Request a quote today and experience the Spanesi difference
