Q.52 inverter
An inverter welder that delivers flawless results, with energy-efficient performance and professional-grade control.
Q5.2 Inverter
An inverter welder that delivers flawless results, with energy-efficient performance and professional-grade control.
A powerful repair platform for medium to large vehicles. The Multibench EXT provides superior precision and speed throughout the entire repair process.
200A Q5.2 Synergic Inverter
Welding Machine
Technical
Specifications
Single-Phase Input 50/60 Hz: 230 ± 15%
Mains Supply: Zmax : 0.21Ω
Power Consumption (I2 @ 60%): 4.6 kVA
Delayed Fuse (I2 @ 100%): 16A
Power Factor / cosφ: 0.68 / 0.99φ
Efficiency Degree: 0.8η
Voltage Without Load: 59 V
Current Range: 10 ÷ 200 A
Duty Cycle @ 100% (40°C): 100 A
Duty Cycle @ 60% (40°C): 115 A
Duty Cycle @ X%: (40°C): 200 (15%) A
Wires Diameter: 0.6 – 1.2 MM
Spool Dia. / Wt.: 100MM / 1 KG – 200mm / 5 KG
No. Rollers: 4
Power Output of Feed Motor: 50 w
Rated Wire Feeding Speed: 1 – 20 m/min
Dimensions: 30″ x 20″ X 37″
Weight: 143.3 lbs
A robust frame machine with
a variety of
benefits
01
Advanced control
The Q5.2 Inverter Welder features an automatic program selection and digital control system for managing material, wire diameter, and gas type.
02
Customizable
Modify parameters and create custom welding programs for specific needs, offering flexibility for different welding projects.
03

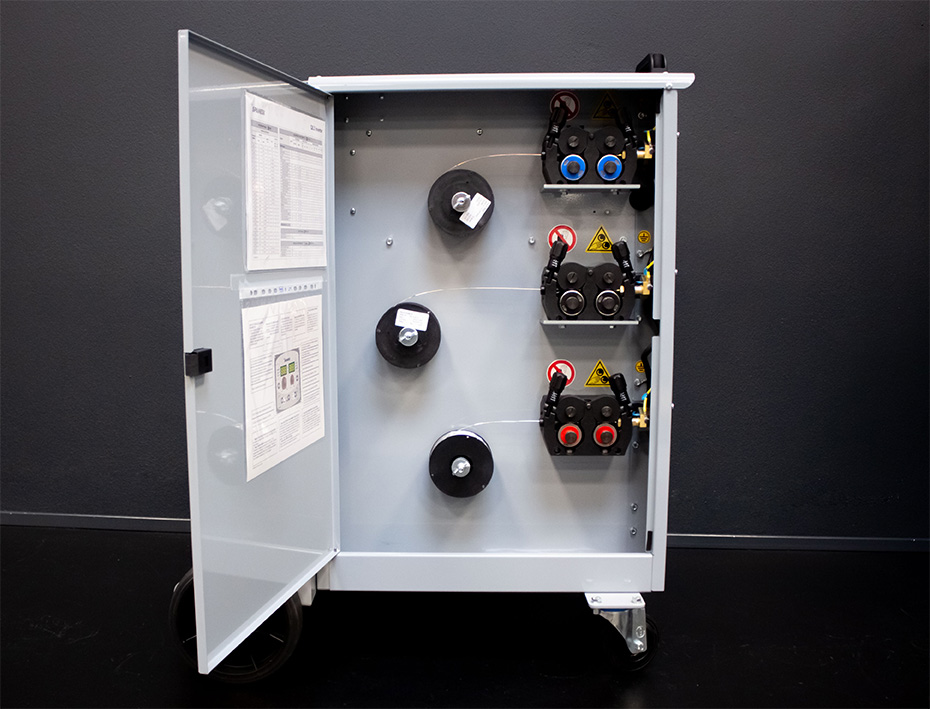

Wire feeding system
Equipped with a 4-roller wire feeder that accommodates all wire types, with a perfect wire cut at the end of operation.
04
Energy efficient
Optimized for high electric performance an designed to reduce energy consumption while providing durability and reliability.
The 200A Q5.2 Synergic Inverter
Welding machine
The Q5.2 synergic inverter welding machine offers a range of advanced features for efficient and precise welding. The automatic selection of welding programs streamlines the welding process, saving time and reducing errors. The sturdy metal support frame ensures stability and durability, while the synergic digital control system manages welding parameters including material, wire diameter, and gas used. A microprocessor ensures arc stability and accuracy despite torch movements and irregularities.
Equipped with multi-process inverter technology, the Q5.2 is a versatile for Mig/Mag welding, pulsed, and double-pulsed applications. Its intuitive adjustment of welding parameters ensures precise control, while the high accuracy and repeatability of results guarantee consistent quality.
Designed for multi-material welding Al-Fe-CuSi, the Q5.2 accommodates a wire diameter range of 0.6mm to 1.2mm. These features make the Q5.2 a valuable welding machine for various body shop applications.
01

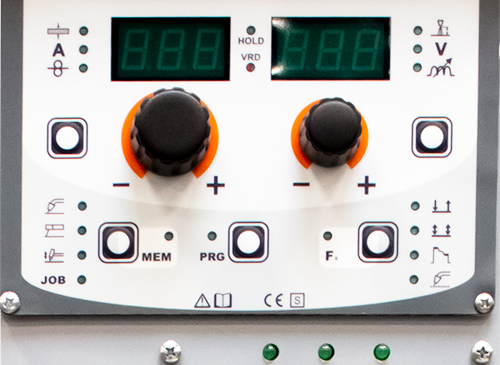

Intuitive controls
Quick access to welding programs and parameters.
02

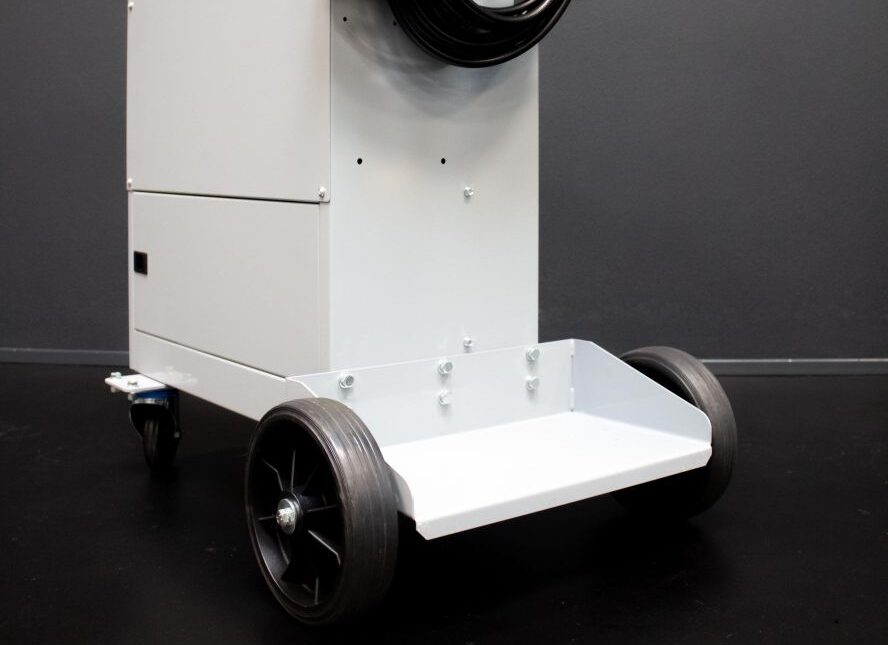

Transportable
Holds up to 2 cylinders for easy transportation.
03
Simple to use
Feeding rollers can be replaced without using tools.
04
Multifunctional
Includes three torches; steel, silicon bronze, and aluminum.
05
Storage
Spare compartment holds parts and accessories
Q5.2
Inverter Welder
Advanced.
Performance.
Optional
Accessories
Get more out of your 200A Q5.2 Synergic Inverter Welding Machine with optional accessories from Spanesi. Expand the capabilities of the Q5.2 to increase service offerings and improve technician repair options and vehicle compatibility.
Click each accessory to learn more.
90KFISS060 | Universal Fixture Cart
Pressure reducer without flow with 2 pressure gauges and adapter.
10SP291000 | Welding Mask
Manual mask designed specifically for welding.

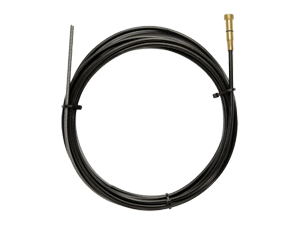

10010515 | Wire Guide Sheath
3M wire guide sheath for use with the Q5.2.
Request A Quote
We offer a complete range of equipment for your body shop. Request a quote today and experience the Spanesi difference
200A Q5.2 Synergic Inverter Welding Machine
Technical Specifications
Single-Phase Input 50/60 Hz: 230 ± 15%
Mains Supply: Zmax : 0.21Ω
Power Consumption (I2 @ 60%): 4.6 kVA
Delayed Fuse (I2 @ 100%): 16A
Power Factor / cosφ: 0.68 / 0.99φ
Efficiency Degree: 0.8η
Voltage Without Load: 59 V
Current Range: 10 ÷ 200 A
Duty Cycle @ 100% (40°C): 100 A
Duty Cycle @ 60% (40°C): 115 A
Duty Cycle @ X%: (40°C): 200 (15%) A
Wires Diameter: 0.6 – 1.2 MM
Spool Dia. / Wt.: 100MM / 1 KG – 200mm / 5 KG
No. Rollers: 4
Power Output of Feed Motor: 50 w
Rated Wire Feeding Speed: 1 – 20 m/min
Dimensions: 30″ x 20″ X 37″
Weight: 143.3 lbs
High quality precision and power
For every welding job
01
Advanced Control
The Q5.2 Inverter Welder features an automatic program selection and digital control system for managing material, wire diameter, and gas type.
03
Wire feeding system
Equipped with a 4-roller wire feeder that accommodates all wire types, with a perfect wire cut at the end of operation.
02
Customizable
Modify parameters and create custom welding programs for specific needs, offering flexibility for different welding projects.
04
Energy efficient
Optimized for high electric performance an designed to reduce energy consumption while providing durability and reliability.
The 200A Q5.2 Synergic Inverter
Welding machine
The Q5.2 synergic inverter welding machine offers a range of advanced features for efficient and precise welding. The automatic selection of welding programs streamlines the welding process, saving time and reducing errors. The sturdy metal support frame ensures stability and durability, while the synergic digital control system manages welding parameters including material, wire diameter, and gas used. A microprocessor ensures arc stability and accuracy despite torch movements and irregularities.
Equipped with multi-process inverter technology, the Q5.2 is a versatile for Mig/Mag welding, pulsed, and double-pulsed applications. Its intuitive adjustment of welding parameters ensures precise control, while the high accuracy and repeatability of results guarantee consistent quality.
Designed for multi-material welding Al-Fe-CuSi, the Q5.2 accommodates a wire diameter range of 0.6mm to 1.2mm. These features make the Q5.2 a valuable welding machine for various body shop applications.
01
Intuitive control
Quick access to welding programs and parameters.
02
Transportable
Holds up to 2 cylinders for easy transportation.
03
Simple to use
Feeding rollers can be replaced without using tools.
04
Multifunctional
Includes three torches; steel, silicon bronze, and aluminum.
05
Storage
Spare compartment holds parts and accessories
Q5.2 Inverter Welder
Advanced. Performance.
Optional
Accessories
Get more out of your 200A Q5.2 Synergic Inverter Welding Machine with optional accessories from Spanesi. Expand the capabilities of the Q5.2 to increase service offerings and improve technician repair options and vehicle compatibility.
Click each accessory to learn more.
10001136 | Pressure Reducer
Pressure reducer without flow with 2 pressure gauges and adapter.
10SP291000 | Welding Mask
Manual mask designed specifically for welding.
10010515 | Wire Guide Sheath
3M wire guide sheath for use with the Q5.2.
