Mohawk Lifts ML-220
20,000 lbs. Capacity
8′ 7″ Column Height
12′ 7 1⁄2” Overall Width (Adjustable)
6′ Lifting Height
Stocked Locally in Farmingdale, NY
Heavy-Duty Lifts Built for Serious Work
Mohawk auto lifts are engineered for long-term performance in the most demanding service environments. Each lift features columns made from ¾-inch thick forklift masts, delivering unmatched strength and reliability over a lifetime of use. Unlike competitors that use plastic slide blocks, Mohawk’s carriages glide smoothly on eight double-sealed, self-lubricating steel ball bearing rollers—eliminating friction, wear, and the need for ongoing maintenance.
To ensure safer and more stable lifting, Mohawk Lifts are powered by two oversized 4-inch hydraulic cylinders. The stainless steel hydraulic lines are fully adjustable to any height and can also be routed in the floor, making it easy to accommodate taller trucks and vans. For flexibility, the 5-inch low-profile swing arms fit under most passenger vehicles and come standard with 5″, 7.5″, and 10″ stackable adaptor pads. Three-stage swing arms allow you to reach even the furthest lifting points with ease.
Industry-Leading Safety Systems
Safety is at the core of every Mohawk Lift. Each unit includes mechanical safety locks built into both columns, engaging at all positions from ground level to full height. Internally, patented infinite-position hydraulic safeties are backed by external pressure-compensated flow controls and velocity fuses for added protection. Swing arm restraints automatically lock when lifting begins and release once the vehicle is fully lowered, ensuring safe operation every time.
Mohawk also offers the best warranty in the business, with 25 years of structural coverage, 10 years of mechanical coverage, and a limited lifetime warranty on hydraulic cylinders. Flexible lease and purchase options are available for terms ranging from one to five years, making it easy to get started. Contact Mohawk today to learn more.

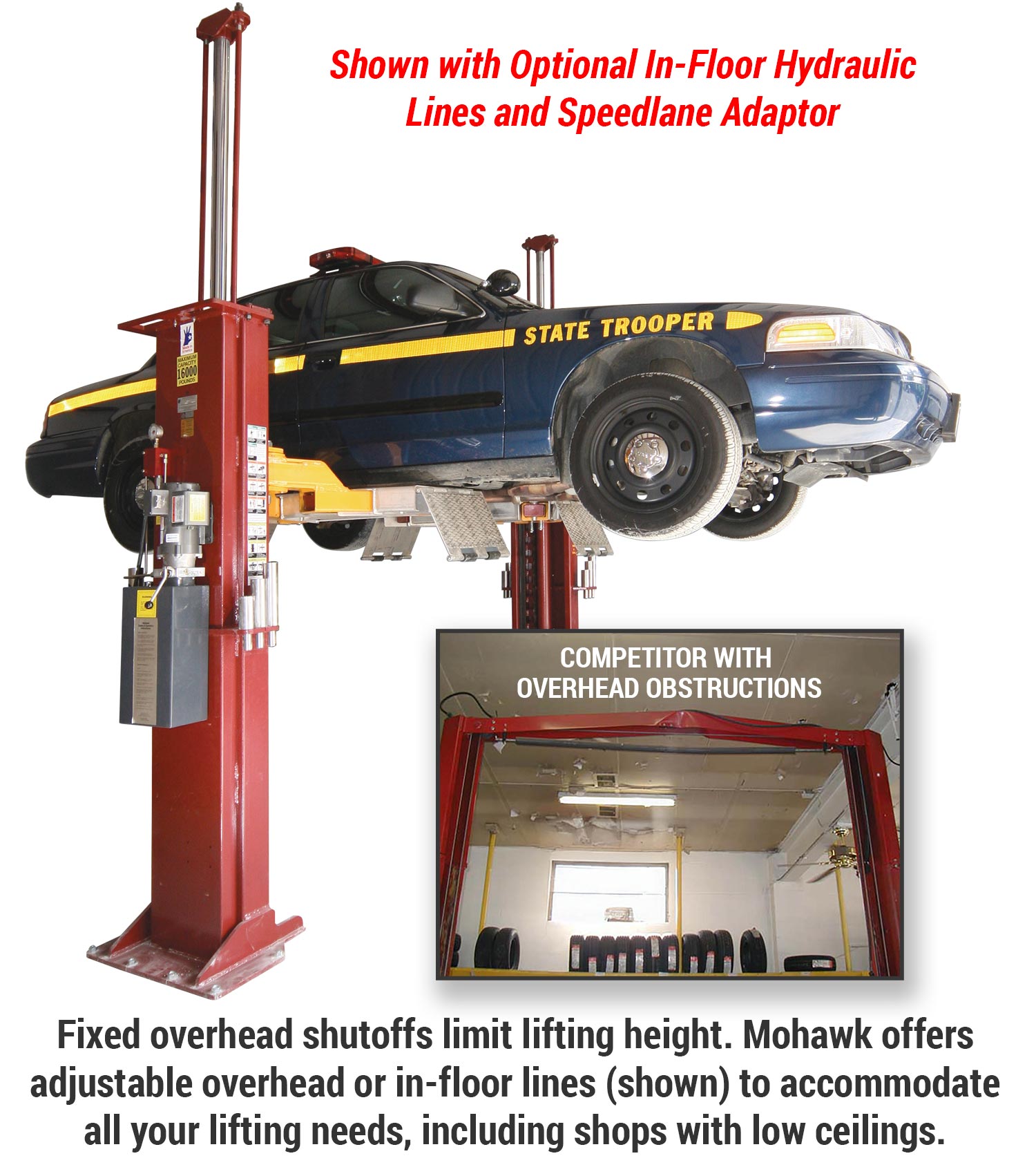

Efficient Lift Operation Without Height Restrictions

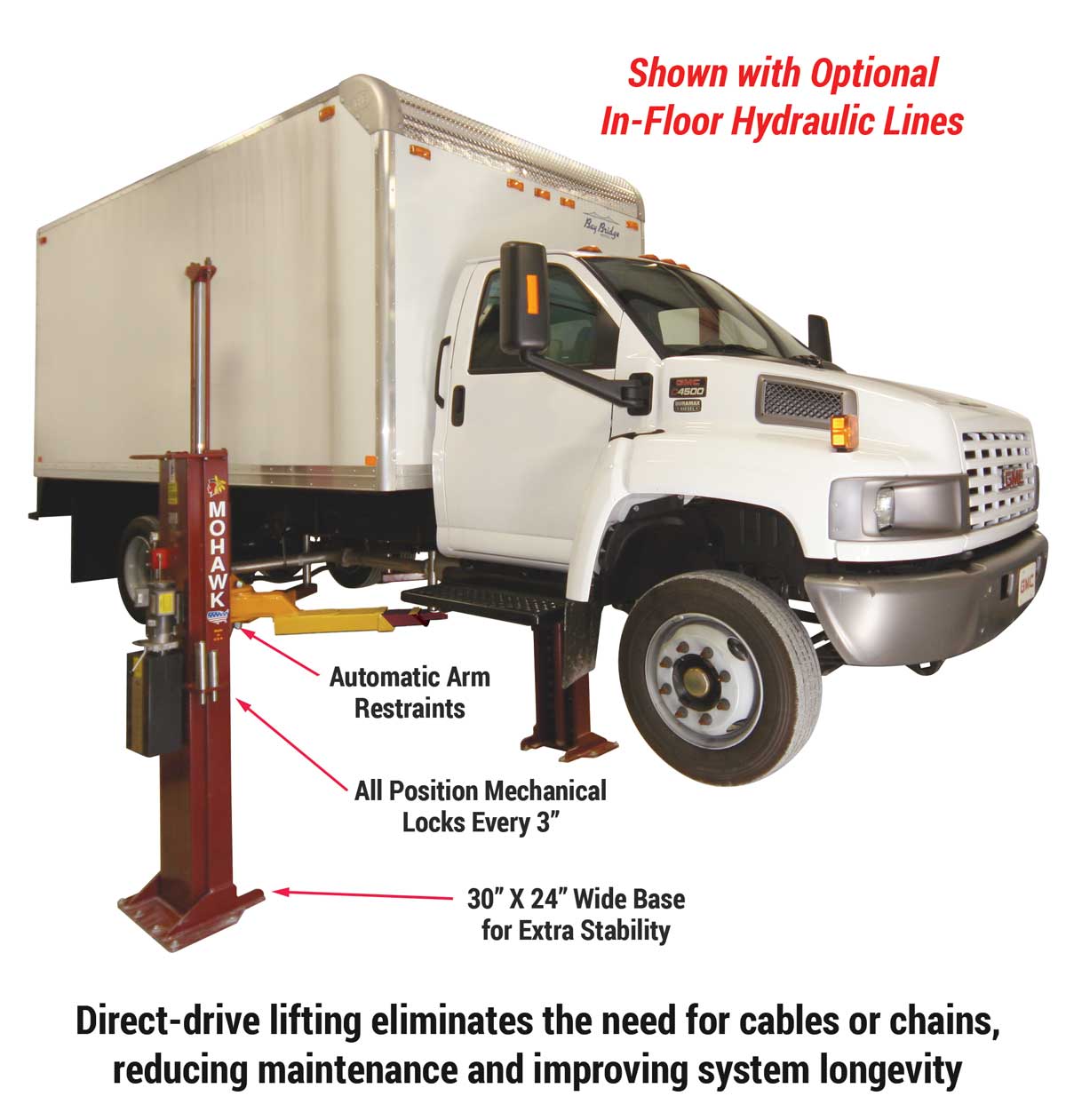

Unlike lifts that use overhead cable covers or obstructive floor plates, Mohawk’s design avoids these limitations entirely. Hydraulic fluid is routed between the two cylinders using overhead or in-floor stainless steel lines, while a patented synchronization system eliminates the need for cables, pulleys, or chains. Direct-drive lifting rods reduce wear and maintenance—far superior to lifts that rely on cable-driven mechanisms.
Because the carriages roll on sealed steel ball bearings, you get lifetime smooth performance with no greasing required. The result is a lift that’s easier to operate, simpler to maintain, and built to outlast everything else in your shop.
The Industry’s Best Warranty – Guaranteed
Backed by the best warranty in the business, the ML-220 includes:
- 25-year structural warranty
- 10-year mechanical warranty
- Limited lifetime hydraulic cylinder warranty
No other lift manufacturer matches Mohawk’s confidence—or commitment—to quality and customer support.
Mohawks ml-220 2-post Features
Under Vehicle Access
Two post lifts offer FULL under vehicle access for all repairs, takes up minimal bay space, while leaving the wheels hanging free for tire, brake or any other necessary repairs.
Heavy Duty Columns
Heavy duty column construction with direct drive cylinders, direct drive lifting rods (not cables) and stainless steel hydraulic lines (not rubber hoses) which will never wear.
4″ Cylinders
Large 4” cylinders equal longer seal life and lower operating pressures vs. smaller competitive cylinders.
Safety Lock
ALL position 1” thick mechanical locks on BOTH carriages engage the full length of travel.
Under Vehicle Access
Two post lifts offer FULL unobstructed under vehicle access for all repairs, takes up minimal bay space and leaves the wheels hanging free for tire, brake or any other necessary repairs.
Lift Footprint
Mohawk’s large and stable footprint measures 30” wide by 24” and is made of 3/4” thick plate. Mohawk’s large base gives stability to the lift, while distributing the load to the shop floor.
Bearing Vs. Plastic
FORK LIFT CHANNEL & bearing (bottom) vs. competitive columns & plastic slider (top).
Column Comparison
Mohawks 10,000 lb. lift uses ¾” high-strength forklift mast steel columns (red lift, above), vs. competitor 12,000 lb. lifts that use bent sheet metal columns (blue lift, above).
Competitor Comparison
Mohawk fork lift channel & bearing (top right) VS. 3 different sheet metal columns which use plastic slides. Like your fork lifts mast, Mohawk lifts DO NOT WEAR OUT!
Lift Carriage
Each carriage rolls on 8 4” double sealed, self lubricating, heavy duty ball bearing rollers for a lifetime of trouble-free service (not plastic slide blocks).
Adaptors
5”, 7 1/2” and 10” stacking adaptors included (for hard to reach frames).
Options & Accessories

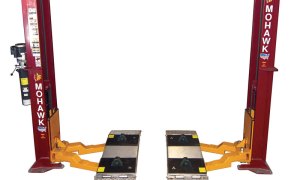

Speedlane Drive-On Adaptor
Turns your two-post lift into a quick drive-on liftNo time wasted positioning swing arms

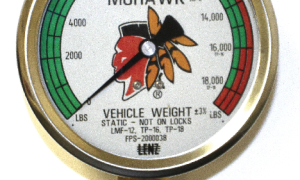

Safety Weight Gauge
Aides in vehicle diagnosis by measuring weight within 5% accuracy. Installed directly into the hydraulic system.

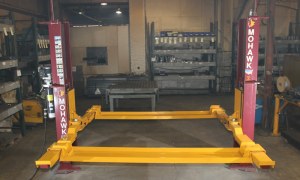

Dual Trough Turf Kit
Turns vehicle lift into a turf maintenance lift. Available for 10,000 to 18,000 lb. capacity two-post lifts
Backsaver

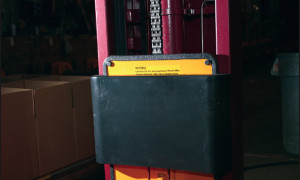

Foam Door Guard
Protects vehicle from dents and scratches if the door is accidentally opened into the columns 2 inch thick soft foam will not damage doors, unlike other hard plastic door protectors.

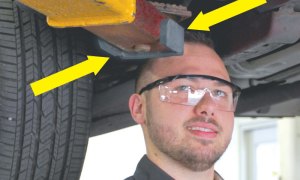

Swing Arm Safety Head Guard
Prevents technicians from hurting or cutting their heads on hard steel swing arms. Easily applied with a peel and stick application. Fits all lift brand swing arm sliders

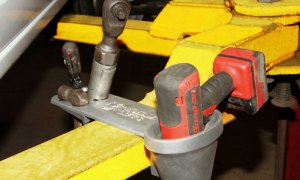

Swing Arm Tool Holder
Fits all Mohawk 10,000 – 18,000 lb. two post lifts Made for all brands and models of impact guns Tool side holds 45 pounds, cup side holds 100 lbs. of tools Slip on design means no installation

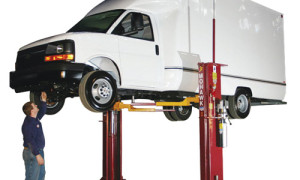

Extended Height Overhead Lines
Made of stainless steel that never needs replacing. Adjustable to any ceiling height Hydraulic lines can be lowered for low ceiling shops

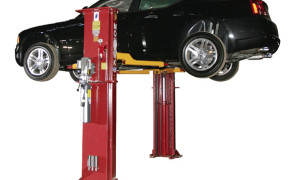

In-Floor Hydraulic Lines
Eliminates overhead lines. Great for shops with low ceilings. Made from one-piece stainless steel, hydraulic lines that never corrode.

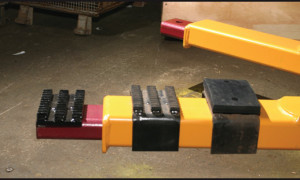

Swing-Arm Lifting Pad
Attaches to swing arm and not slider. Available in rubber or steel. Gives access for special lifting requirements. Optional rubber protects underbody

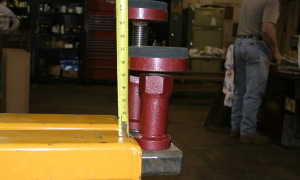

Adjustable Screw Pads
Height adjustable screw type lift pads. Available for all 10,000 to 30,000 lb. capacity two-post lifts Choice of rubber or steel top pads. Gives additional 3+ inches of fine pad adjustment.
100% designed, welded, and manufactured in the U.S.A.
| Model: | ML-220 |
| Motor Rating: | 3 HP/208-230V, Single-phase (3ø optional) |
| Synchronization: | Hydraulic fluid displacement using no chains, cables, or overhead obstructions |
| Arm Pad Height: | 4.5" |
| Lifting Height: | 6' under arm |
| Lift Pad Height @ Full Rise: | 6' 5" |
| Lift Pad Height @ Full Rise w/ Adaptors: | 7' 3" (includes 5", 7 1⁄2” and 10" stackable lift adaptor pads) |
| Overall Width (adjustable): | 12' 7 1⁄2” (adjustable) |
| Width Between Posts: | 10' (adjustable) |
| Width Between Lifting Arms: | 8’ 9 3⁄4” (adjustable) |
| Column Height: | 8' 7" |
| Overhead Hydraulic Line Height: | 15’ Standard (adjustable to accommodate any height ceiling or routed in-floor) |
| Weight: | 4,100 lbs. |
| Concrete Floor Requirements: | 4000 psi (27579.02 kPa) mix 61/2” |
| Wide Base: | 5 1⁄2" of 4,000 psi concrete |
| Standard Base: | 6 1⁄2" of 4,000 psi concrete |
| Anchoring System (included): | (16) 3⁄4"x6" bolts |
| Mechanical Safety Locks: | Automatic; all position starting ground level |
| Hydraulic Safety System: | Automatic; all position |
| Swing Arm Restraints: | Automatic upon ascent |
| Cylinders: | 2 (1 per column) |
| Drive System: | #BL-848 leaf chain routed over cylinder |
| Lifting Speed: | 90 seconds at full load (faster with lighter load) |
| Thrust & Guide Bearings: | (16) 4" diameter, (8 per carriage) double sealed, self-lubricating ball bearing rollers |
| 5" Frame Adaptors (stackable): | 4 included as standard equipment |
| 7 1/2" Frame Adaptors (stackable): | 4 included as standard equipment |
| 10" Frame Adaptors (stackable): | 4 included as standard equipment |
| Floor Access Between Posts: | Clear and unobstructed |
| Warranty: | 25 years structural, 10- year mechanical, plus limited lifetime cylinder seal warranty |
