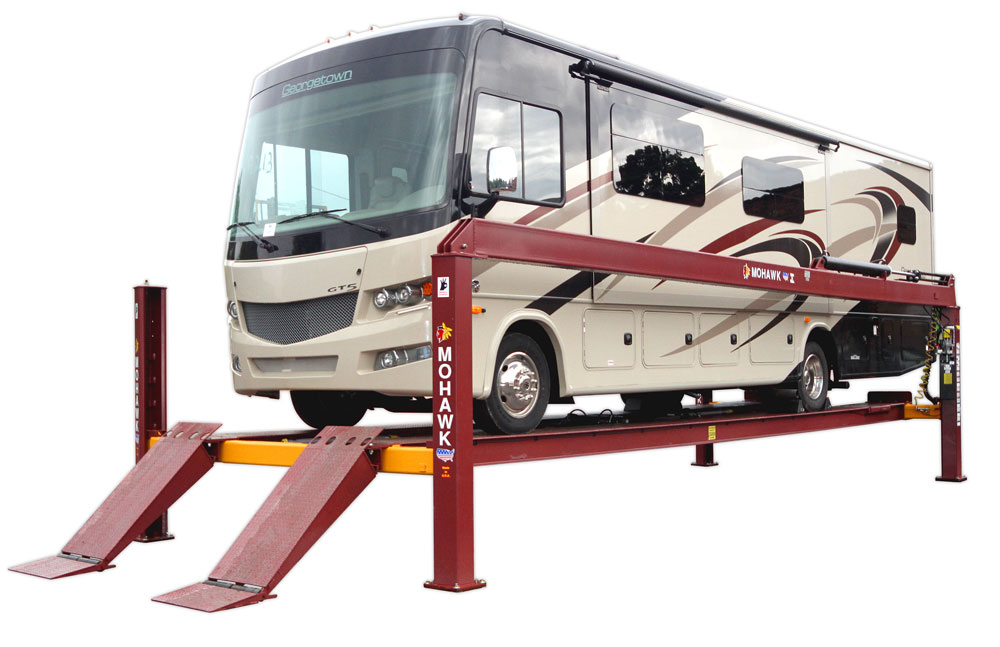

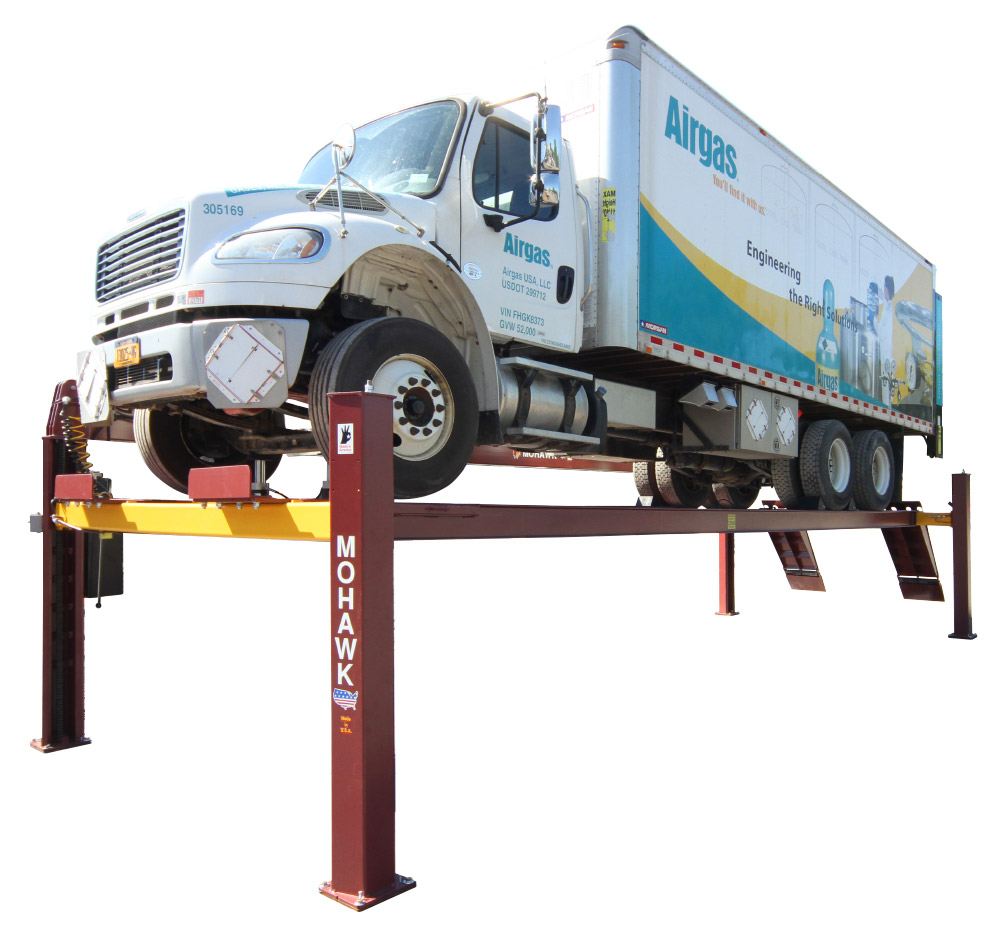

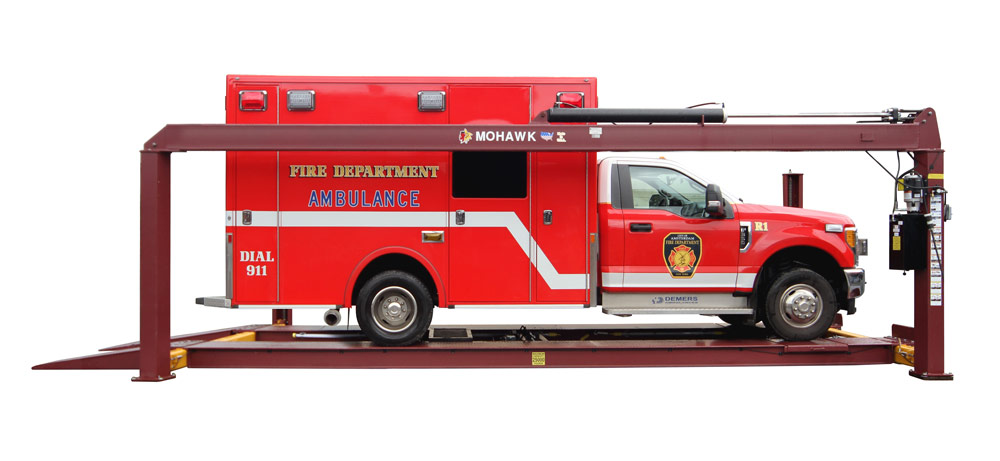

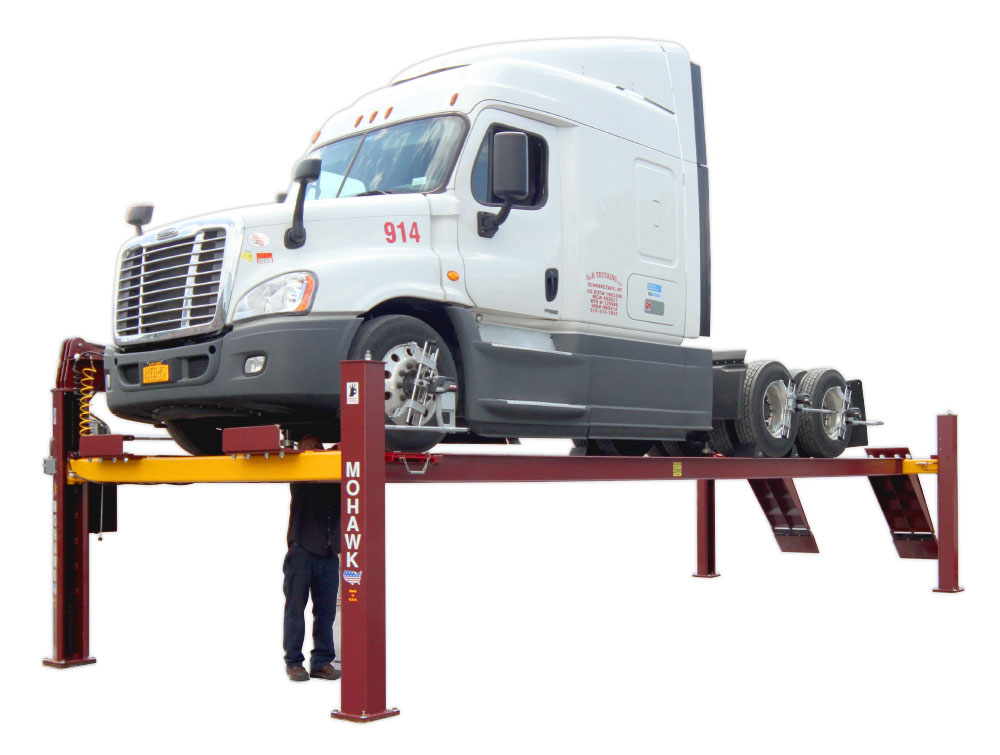

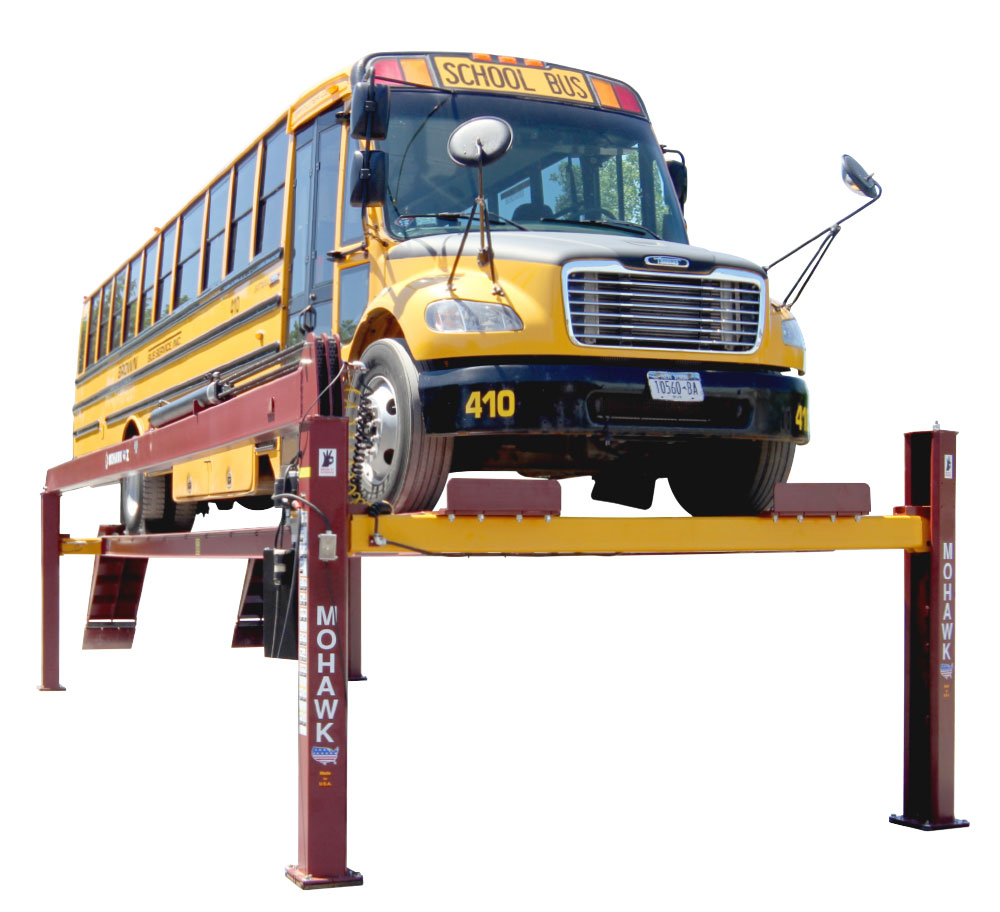

Mohawk Lifts TR-19/25
ALI Certified 19,000 lbs. / 25,000 lbs. Capacity
27′-3″ Overall Length (With 20′ Runways)
12′ 6″ Overall Width
5′ Lifting Stroke
Stocked Locally in Farmingdale, NY
For All Your Shop’s Lifting Needs
The TR-19/25 is the all-purpose solution for automotive and fleet service. Its above-ground four-post design avoids the environmental concerns and maintenance headaches of in-ground lifts while allowing fast installation indoors or outdoors. With a completely clear floor, toolboxes, jacks, and other shop equipment roll freely between the posts, and technicians enjoy full under-vehicle access without the side obstructions found on scissors or parallelogram lifts.
Wide, Durable Runways
Each runway measures 24 inches across and is surfaced with heavy-duty diamond plate steel for exceptional traction and long-term durability. This setup provides a full 48 inches of unobstructed span beneath the vehicle for easier repairs. For oversized applications—such as snow-plow trucks with winged blades or RVs with wide mirrors—the lift can be ordered up to nine inches wider. Every TR-19/25 comes with Mohawk’s full three-year warranty and the industry’s only extended cylinder coverage, delivering peace of mind and proven reliability.
Versatility and adaptability
Whether you service cars, vans, trucks, buses, RVs, or twin-axle tractors, the TR-19/25 is built to handle them all. Adjustable runways accommodate vehicles up to either 19,000 or 25,000 pounds, and the lift raises to a full five feet nine inches, giving tall technicians plenty of working room. An optional 110-volt electric/hydraulic rolling jacking beam, rated at 15,000 or 25,000 pounds, can be positioned anywhere along the runways for added flexibility.
Heavy-Duty Construction

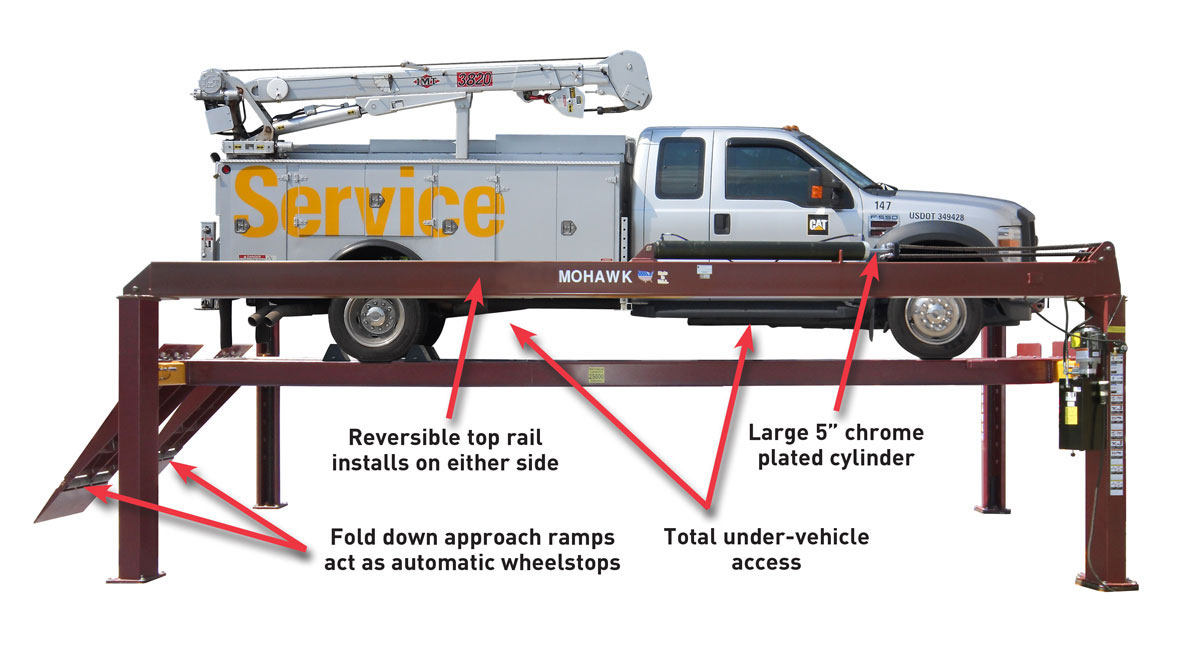

The lift’s runways are formed from parallel eight-inch steel I-beams—three I-beams on the 30-foot model—supported by rugged seven-by-five-inch structural steel cross rails. A ten-by-six-inch top rail can be reversed to either side for convenience. Mohawk’s chain-drive system eliminates the stretch and fray issues common to cable lifts, while double-sealed, self-lubricating steel rollers keep every pivot point running smoothly. Built heavier and safer than any comparable four-post lift, the TR-19/25 sets the standard for performance and durability in professional shops.
Unmatched Safety Standards
Safety is engineered into every TR-19/25. Multi-position mechanical locks engage at all four posts, and hydraulic safeties feature pressure-compensated flow control valves and tamper-proof velocity fuses. A single-position, two-hand release ensures controlled lowering, while mechanical chain synchronization keeps the lift perfectly level at any height.
4-Post Automotive Lift Features

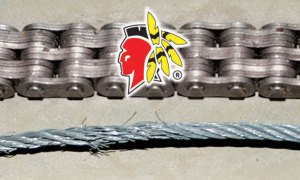

Chain Vs. Cable
#646 High strength leaf chain compared to the competitive cables which fray.

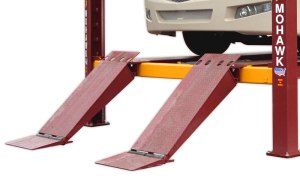

Approach Ramps
Shallow angle approach ramps are 24” wide for easy drive on with the ability to accommodate a wide variety of vehicles.

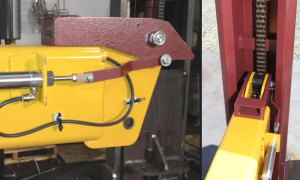

Safety Locks
Mohawk’s all-position safety locks engage every 6” and continue to full lifting height (picture on right shows lock engaged).

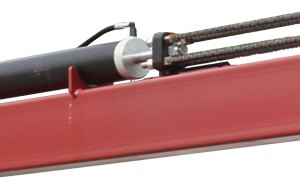

Large 5″ Cylinder
Large 5” chrome plated cylinder with leaf chain drive system eliminates stretch, fray, pulleys and maintenance associated with cable driven lifts.

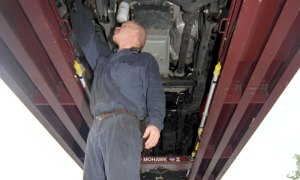

Full Under Vehicle Access
Full under-vehicle access with no obstructions. Rolling jacks allow tires to raise off runways.
Options & Accessories

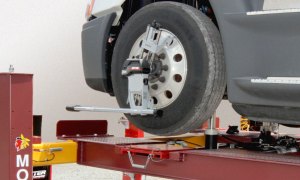

Alignment Compatible
To verify alignment at any working height.

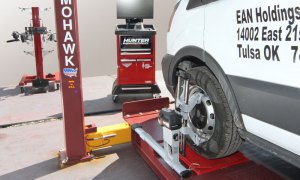

Alignment Option
TR-25 alignment lift shown with alignment plates and tires raised off of runways.

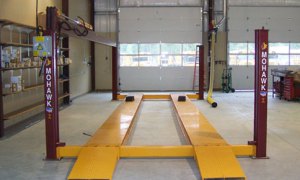

Drive Through Approach Ramps
Shallow angle approach ramps are 24” or 32” wide for easy drive on with the ability to accommodate a wide variety of vehicles.

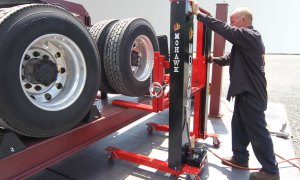

Tire Dolly

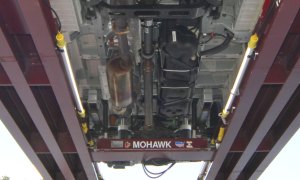

LED Track Lighting
Optional shatterproof LED track lighting to brighten up the darkest vehicle undercarriages.

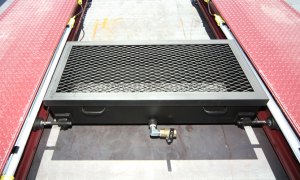

Rolling Oil Pan
Optional rolling 25 gallon oil drain pan makes oil changes quicker & easier. Expanded steel grate supports filters when draining.

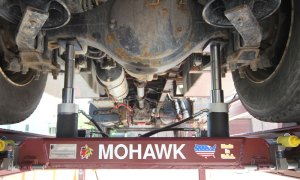

Rolling Jack
15,000 or 25,000 lb. capacity rolling electric/hydraulic low profile jacks for “wheel free” tire and brake service. Jacks roll the full length of the runway, or use two jacks to raise the entire vehicle off of the runways.

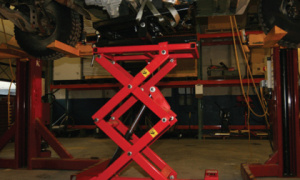

Scissor Lifting Table
2,500 lb. air/hydraulic scissor lifting table for removing rear ends, differentials or heavy transmissions.
100% designed, welded, and manufactured in the U.S.A.

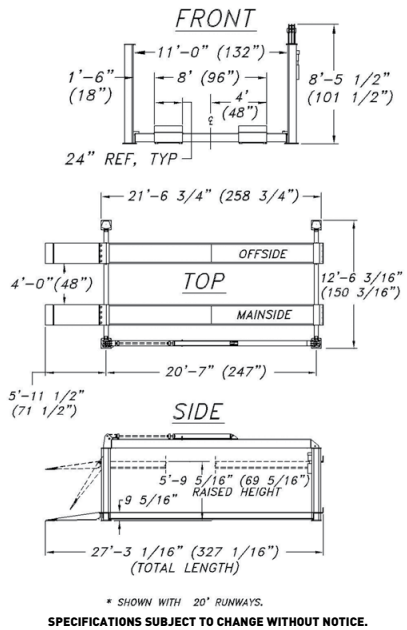

| Model: | TR-19 | TR-25 |
| Capacity: | 19,000 lbs. | 25,000 lbs. |
| Motor Rating: | 2 HP/220 V Single-Phase (3 phase optional) | |
| Lifting Mechanism: | 5" Hydraulic Cylinder Attached to (4) #646 Leaf Chains | |
| Overall Length: | 27'-3" (with 20' runways) | |
| Track Length: | 16'-9", 20'-25" or 30' | |
| Overall Width: | 12' 6" | |
| Lifting Stroke: | 5' | |
| Height @ Full Stroke: | 5'-9 5/16" (top of runways) | |
| Track Width: | 24" | |
| Track Adjustment: | 4' or 8' | |
| Clearance Between Posts: | 11' Standard (Wider Available) | |
| Mechanical Safety Release: | Single Point | |
| Mechanical Safety Locks: | Multi-Positions | |
| Back-Up Hydraulic Safety Systems: | Pressure Compensated Flow Controls & Velocity Fuses | |
| Concrete Requirements: | 4,000 PSI concrete 4 1/2" thick floor | |
| Warranty: | 3 YEARS (Excluding Motor/Pump) | |
| Lift Weight: | 5,250 lbs. (with 20' tracks) |
