Mohawk Heavy Duty 4 Post Lifts TR-75

Mohawk Lifts TR-35/50/75

ALI Certified 35,000 lbs. / 50,000 lbs. / 75,000 lbs. Capacity



34′- 11 3/4″ Overall Length (With 20′ Runways)

14′ 5 1/2″ Overall Width

5′ Lifting Stroke

Click For Pricing Information

Stocked Locally in Farmingdale, NY

Fast, Clear, and Environmentally Friendly

Mohawk’s above-ground, four-post design is built for speed and efficiency. Simply drive on and start work—no wheelbase adjustments required. Unlike in-ground lifts, the surface-mounted TR-Series installs quickly and avoids environmental concerns while offering a completely clear floor. Toolboxes, high-rise tire dollies, and shop equipment can move freely under and around the vehicle, giving technicians unobstructed access for every repair.

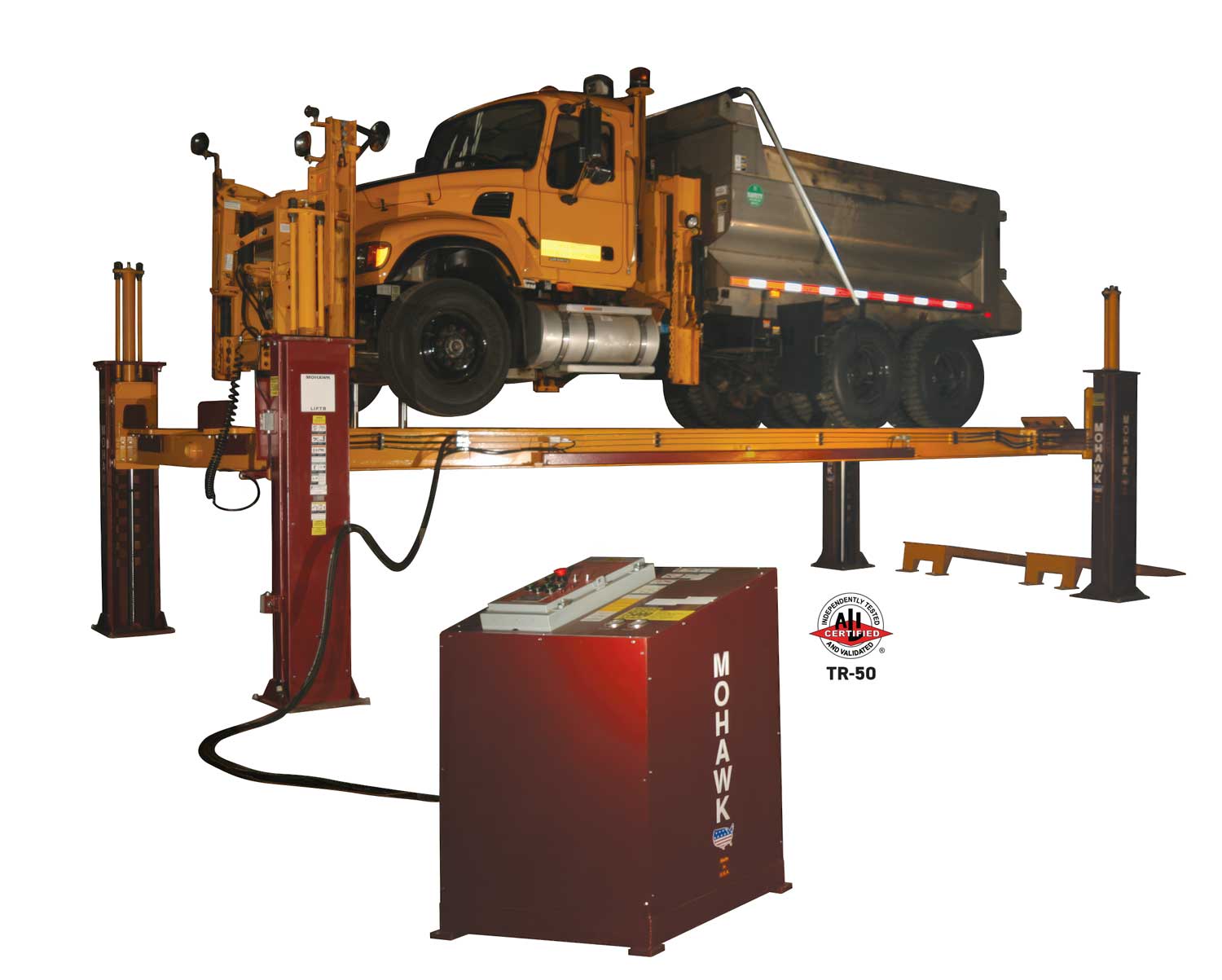

Mohawk Heavy Duty 4-Post TR-35

Versatile Runways & Heavy-Duty Construction

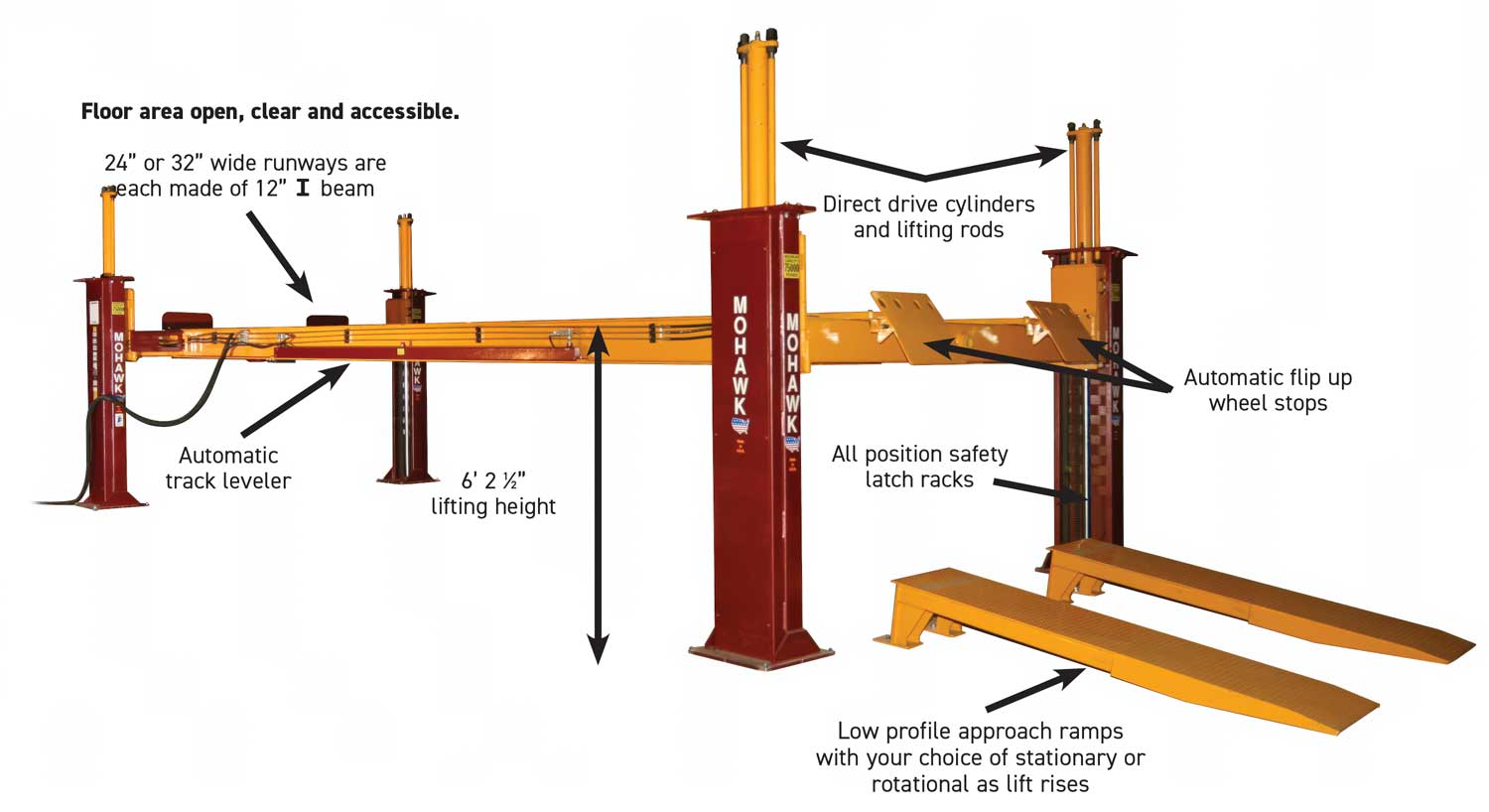

Mohawk 4-Post Heavy Duty Runway Construction

Each runway measures 24 inches across and is surfaced with heavy-duty diamond plate steel for exceptional traction and long-term durability. This setup provides a full 48 inches of unobstructed span beneath the vehicle for easier repairs. For oversized applications—such as snow-plow trucks with winged blades or RVs with wide mirrors—the lift can be ordered up to nine inches wider. Every TR-19/25 comes with Mohawk’s full three-year warranty and the industry’s only extended cylinder coverage, delivering peace of mind and proven reliability.

Superior Safety & Service Options

Safety is engineered into every TR-Series lift. Multi-position mechanical locks engage in all four posts, backed by redundant hydraulic safeties with pressure-compensated flow control and tamper-proof velocity fuses. A single-point lock release, mechanical side-to-side chain synchronization, and an automatic track leveler keep runways perfectly level even under heavy loads. Built-in front and rear wheel stops, automatic flip-up chocks, and double-sealed, self-lubricating ball-bearing rollers ensure smooth, reliable operation without plastic slide blocks. Optional equipment—such as rolling jacks, track lighting, air lines, oil drain pans, and 110-volt outlets—lets shops customize the lift to their workflow.

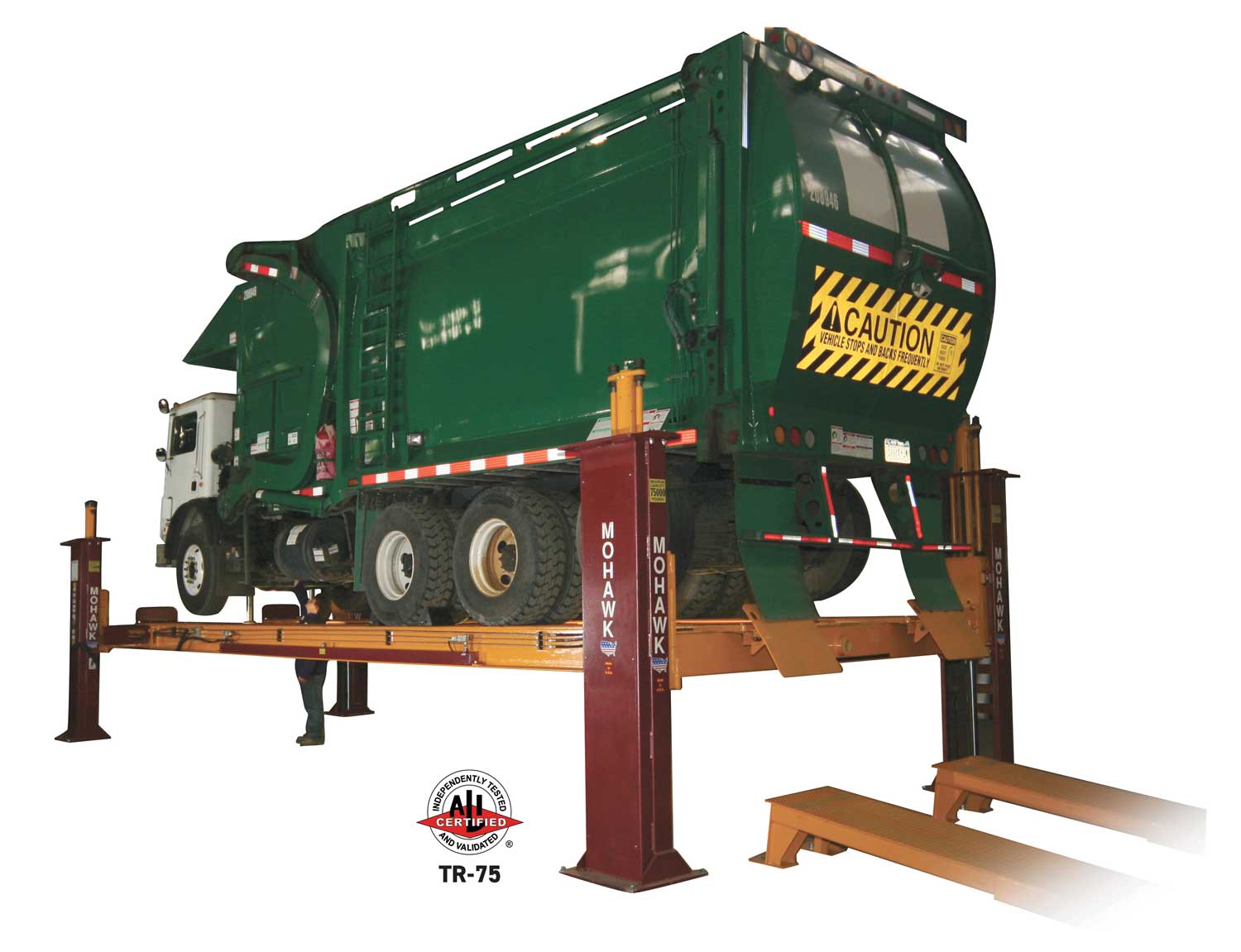

Mohawk Lifts Heavy-Duty 4-Post Lifts

4-Post Automotive Lift Features

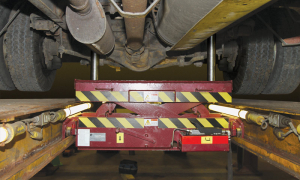

Under Vehicle Access
Under Vehicle Access

Full under-vehicle access with no obstructions (Note: tires raised off of runways.)

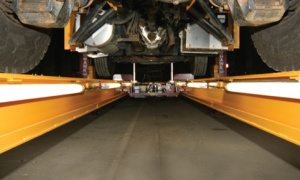

Optional Track Lighting
Optional Track Lighting

Optional shatterproof flourescent track lighting to brighten up the darkest vehicle undercarriages.

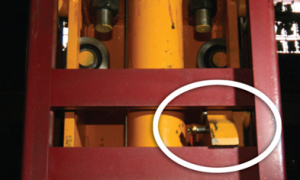

Safety Locks
Safety Locks

Mohawk’s all-position safety locks engage every 6” and continue to full lifting height.

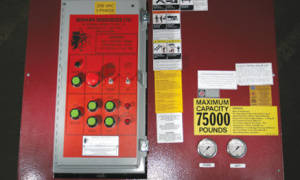

Mohawk Simple Control Panel
Simple Control Panel

TR control panel design features simple two handed operation for maximum safety with single point lock release.

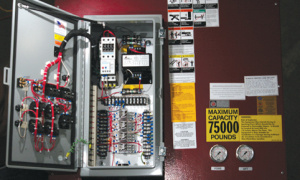

Mohawk 10HP Unit
10 HP Unit

10 HP unit designed for long life, smooth operation and minimal maintenance. Uses modular manifold valving for simplicity.

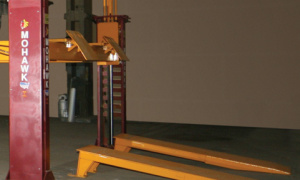

Mohawk Approach Ramps
Approach Ramps

Shallow angle approach ramps are 24” wide for easy drive on with the ability to accommodate a wide variety of vehicles.

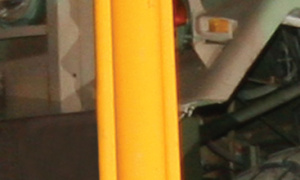

Mohawk Direct Drive Cylinders
Direct Drive Cylinders

Built for the heavy duty lift user. Mohawk’s 4 direct drive cylinders are engineered for a lifetime of heavy duty use.

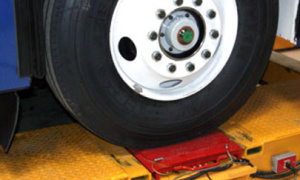

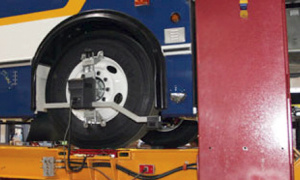

Mohawk Alignment Compatible
Alignment Compatible

ALIGNMENT COMPATIBLE. To verify alignment at any working height.

Mohawk Alignment Compatible
Alignment Compatible

ALIGNMENT COMPATIBLE. To verify alignment at any working height.

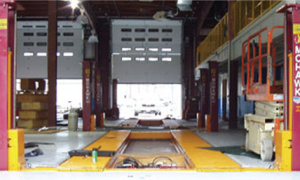

Mohawk Flush Mount Capable
Flush Mount Capable

Mohawk Lifts can be installed as flush-mounted lifts, leaving runways level with shop floor.

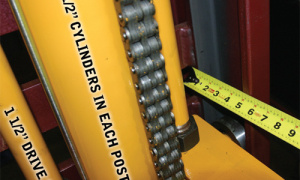

Mohawk Fork Lift Mast Columns
Fork Lift Mast Columns

Mohawk columns are made of 6″ x 1″ thick fork lift mast sections, with carriages riding on 4″ sealed ball bearing rollers and raise via direct drive lifting rods.

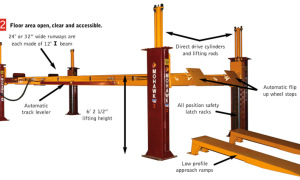

Mohawk Heavy Duty 4-Post TR-35 Runway Construction
Open Floor Area

Floor area open, clear and accessible.

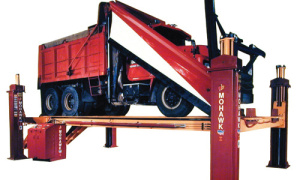

Mohawk Custom Width & Capactities
Custom Widths & Capacities

Mohawk runways can be set off center for wider equipment, or lifts can be manufactured with wider cross-rails, wider runways or heavier capacities.

Options & Accessories

TD1000/TD2000 Tire Dolly
Model TD1000/TD2000 Tire Dolly

1,000 and 2,000 lb. capacities. Use with any lift or anytime.

Movable Air Inflated Approach Ramps
Movable Air Inflated Approach Ramps

Made to Order Movable Air Inflated Approach Ramps.

Mohawk Rolling Jack
Rolling Air/Hydraulic Jacking Beam

Optional rolling air/hydraulic jacks for “wheels free” tire and brake service. Jacks roll the full length of the runway and have a mechanically activated lock.

Mohawk 4-Post Track Lighting
Track Lighting
Optional shatterproof track lighting to brighten up the darkest vehicle undercarriages.
Rolling 25 Gallon Drain Pan
Rolling 25 Gallong Drain Pan

Optional rolling 25 gallon oil drain pan makes oil changes quicker & easier. Expanded steel grate supports filters when draining.

Scissor Lifting Table
Scissor Lifting Table

2,500 lb. air/hydraulic scissor lifting table for removing rear ends, differentials or heavy transmissions.

Mohawk 6 Post 60' Long Lift
Mohawk 6-Post 60′ Long Lift

Rack lengths available from 20 to 60 feet Six-post design for longer runways assures maximum wheel base coverage.

100% designed, welded, and manufactured in the U.S.A.

WP DataTables

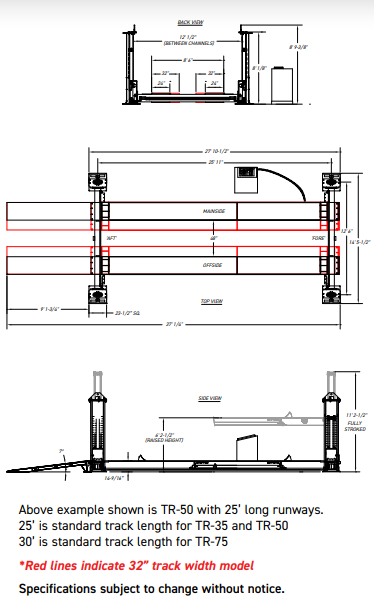

Mohawk 4-Post Heavy-Duty TR Series Diagram
