Ace Service & Installation is a proud distributor of Mohawk Lifts! Since 1981, Mohawk has manufactured the highest quality, safest Heavy Duty Lifts. Mohawk’s quality of design and manufacturing is truly unrivaled by any other heavy duty lift manufacturer.
In addition to their high-quality safety systems, design and construction, Mohawk offers the most inclusive warranty in the service lift industry. Just compare our lifts to the competition. Mohawk Lifts are proudly welded and built in Amsterdam, NY. Our staff will assist you with any technical questions you have about our entire line of vehicle lifts listed below.
The 800-Series:
The Mohawk 800 Series Mobile Column Lifts provide 14,000- or 18,000-pound capacity per column, allowing total lift configurations of 56,000 or 72,000 pounds with a set of four. Each column can operate individually, in pairs, or as a synchronized group of up to eight, and the compact design lets a single operator roll the columns into position and transform any flat surface into a fully functional service bay within minutes.
100% Designed, Welded & Manufactured In the U.S.A

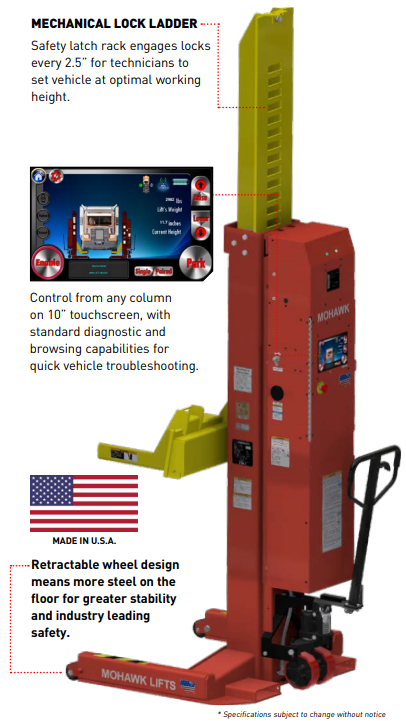

Mohawk Lifts 800-Series Mobile Column Lift
14,000 lbs. / 18,000 lbs. Capacity per Column
32″ (2 Posts) / 69″ (4 Posts) – Lifting Stroke
Stocked locally in farmingdale, NY
Design Features & Benefits
- All columns operate together, individually or can be divided into multiple pairs (2, 4, 6 or 8), with capacities of 56,000 or 72,000 lb for sets of 4.
- Wireless system operates on broad range of channels to limit interference, with multiple frequencies.
- Visual indicator lights show real-time charge level status.
- Utilizes 24 volt operation with built-in 110 volt charging system.
- 69” lifting height in Standard Mode & 32” with two columns in Wheel-Lift mode.
- Hydraulic operation (no screw drives) for safe, efficient, low maintenance, fast & easy lifting.
- Safety latch rack engages locks every 2.5” for technicians to set vehicle at optimal working
height. - Available adapters include 18,000 lb capacity front-to-rear adapter and 15,000 lb capacity forklift adapter.
- Adjustable lifting forks accommodate rims from 5” to 24.5”.
- Adjustable forks means no wheel reducer sleeves to buy, lose or slip off.
- Positive grip ensures carriage forks stay in place when engaged.
- Low profile fork angle for easy positioning of
columns, especially for floatation tires.
ACCESSORIES & OPTIONS
Slope Indicator
Attaches to the mobile column to display the floor slope measured in degrees.
Mid & Full Height Jack Stands

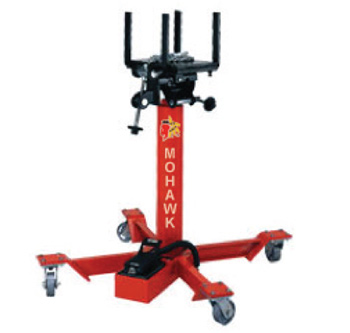

Transmission Jack

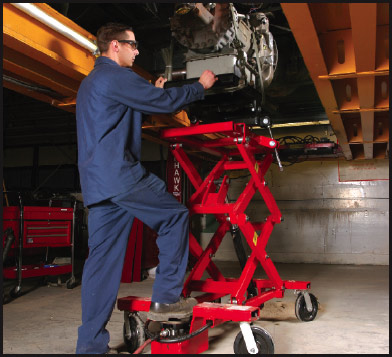

Scissor Lifting Table
Handles power train components like engines and their transmissions.
Featured Images

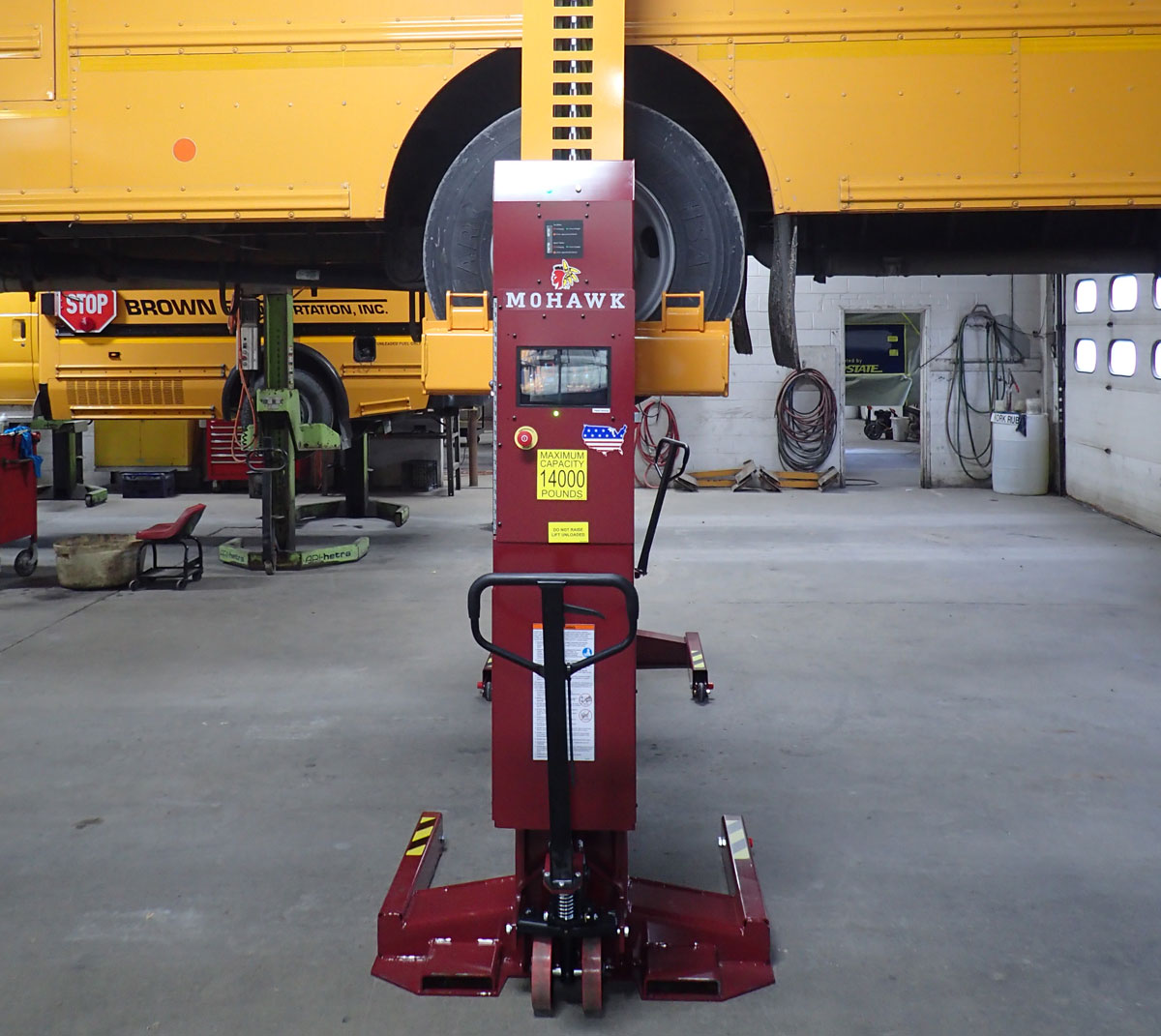

Wireless Columns

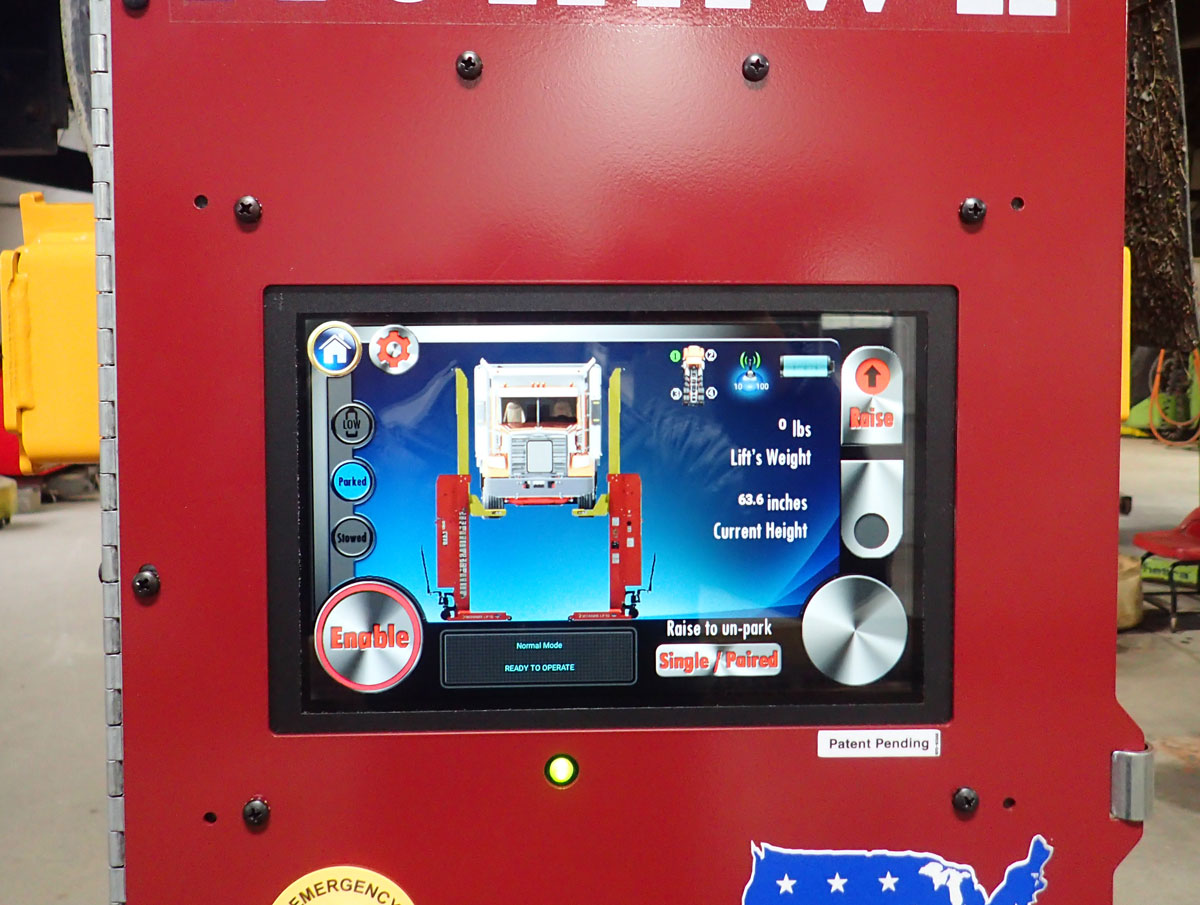

Full Diagnostic Display

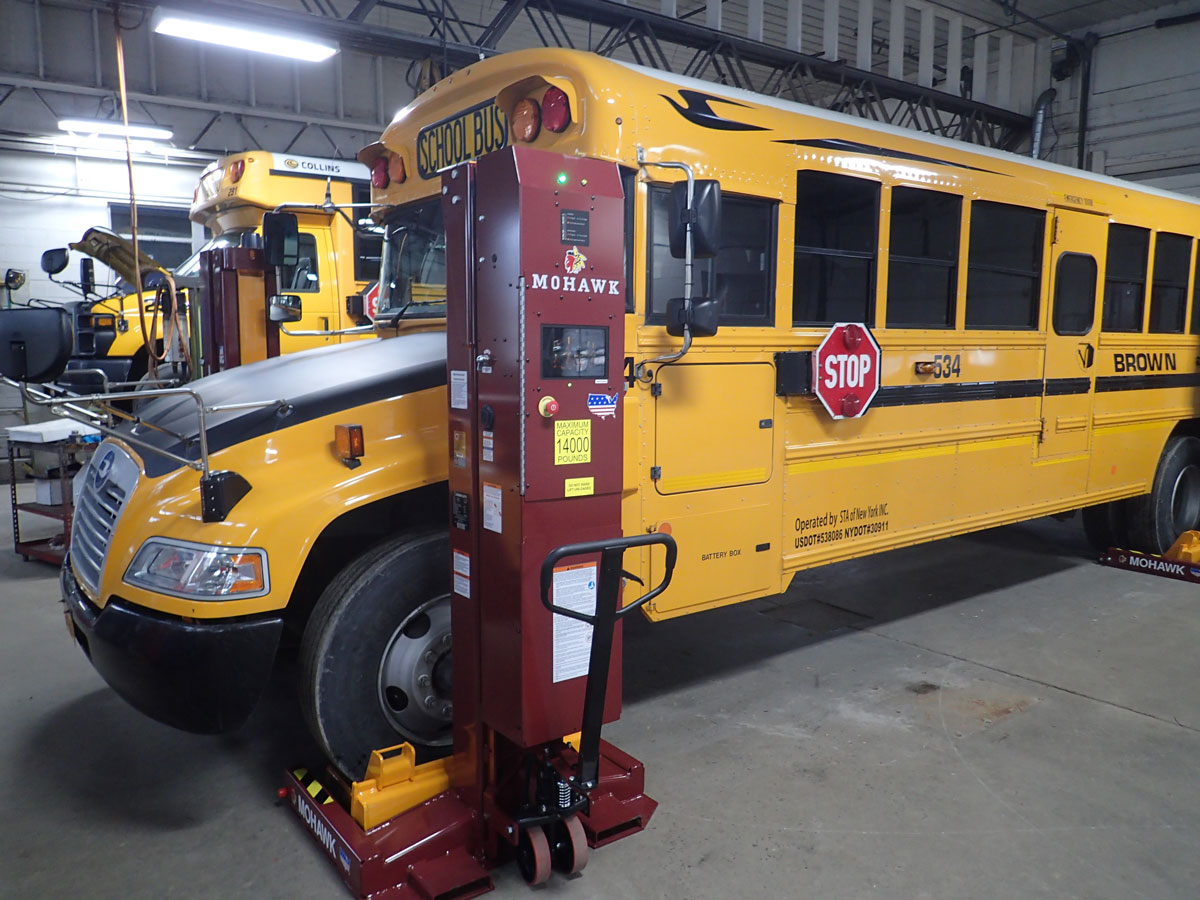

Compact Footprint

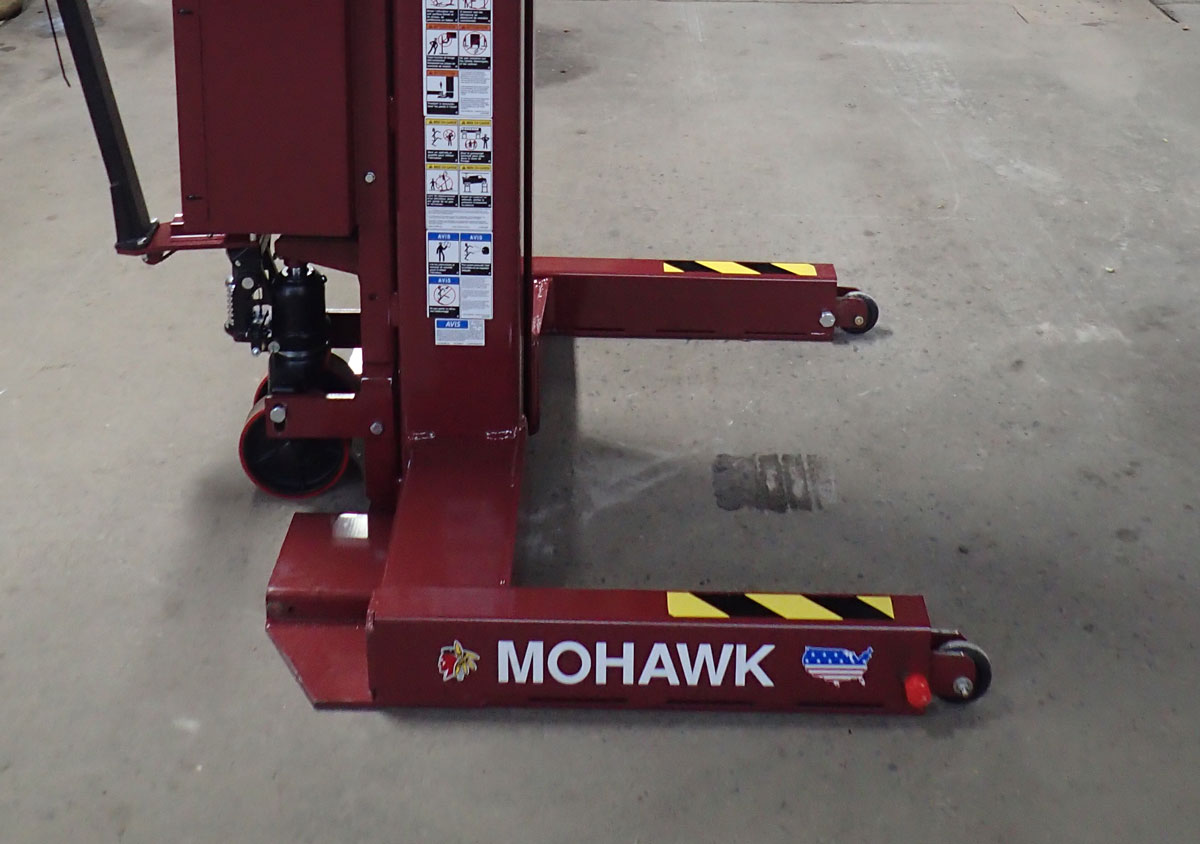

Base Design

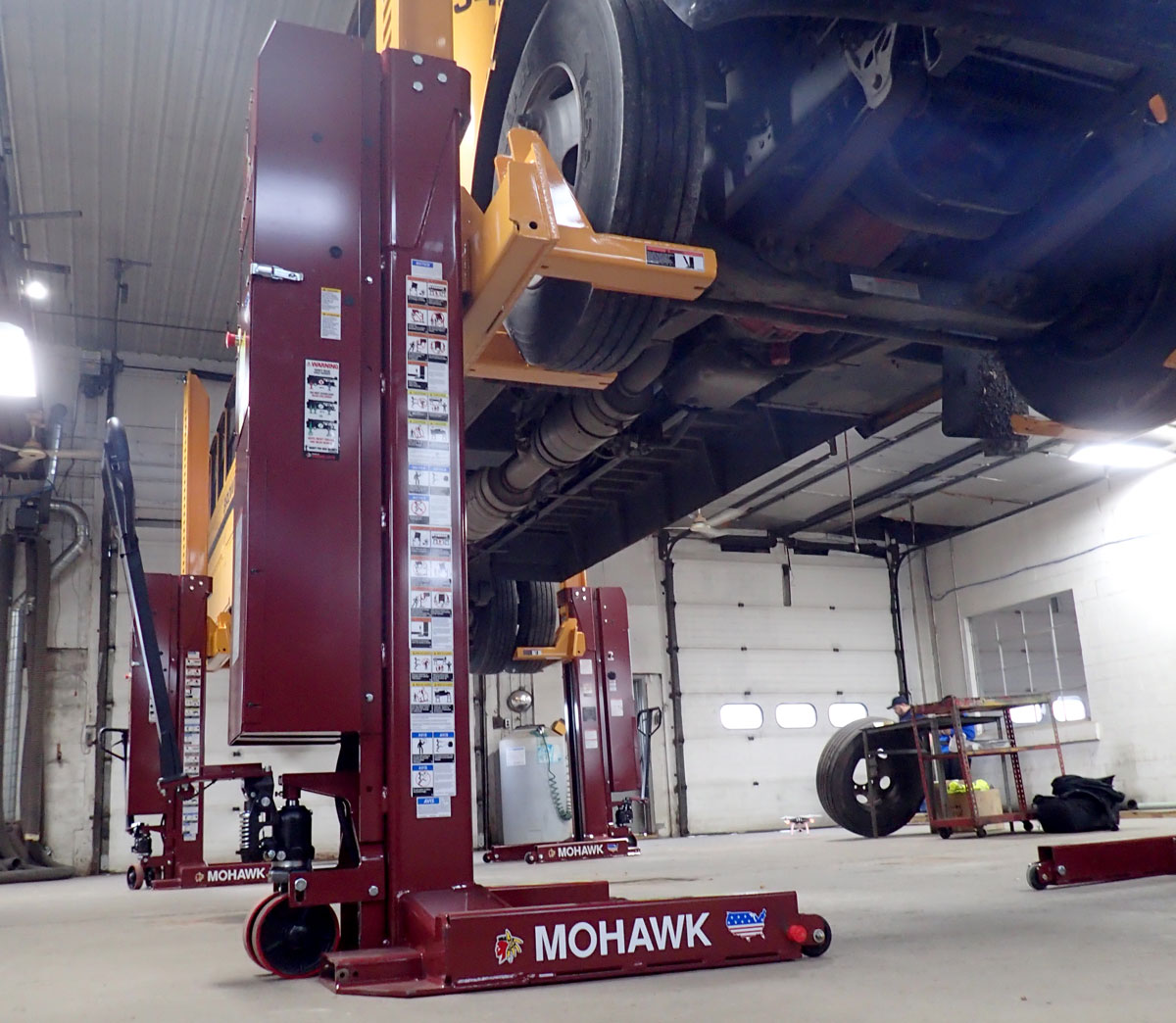

Under Carriage Access
800-Series Specifications
| Model: | MP-800-014 | MP-800-018 |
| Capacity per Post: | 14,000 lbs. | 18,000 lbs. |
| Height of Lift Unit: | 88.5" | |
| Height of Lift Unit at Full Rise: | 157.125" | |
| Width of Lift Unit: | 44.25" | |
| Length of Lift Unit: | 53.625" | |
| Max. Lift Height (4 or more units): | 69" | |
| Max. Lift Height (2 units - Wheel Lift Mode): | 32" | |
| Min-Max Wheel Diameter: | 5" - 24.5" | |
| Max. Hydraulic System Operating Pressure: | 2,180 psi | |
| Lift Speed (Max Load): | 60" per min. | |
| Weight of Lift Unit: | 1,485 lbs. | 1,510 lbs. |
| Footprint of Lift Unit: | 560 sq in. | |
| Ground Pressure for each Lift (Max. Load): | 27.7 psi | 36.6 psi |
| Turning Radius of Lift Unit: | 47" | |
| Operating Peak Power: | 4HP | |
| Operating Voltage: | 24 VDC Nominal | |
| Charger Voltage Required: | 120 VAC @ 60 Hz | |
| Charger Amps Required: | 1.3 amps |
